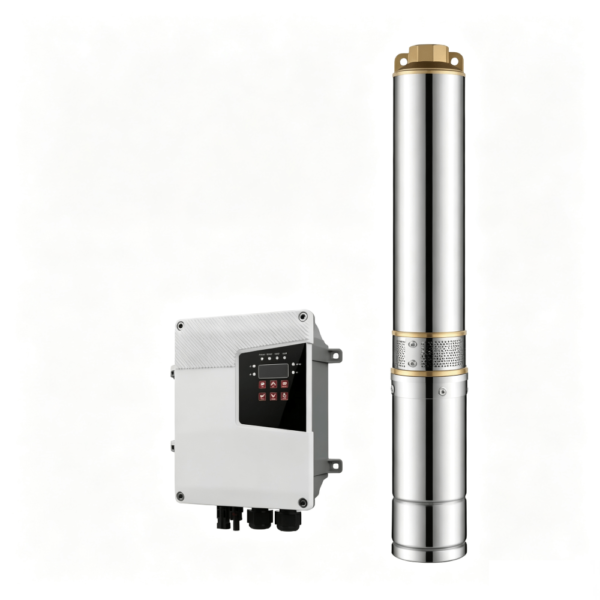

S4PCB 4-Inch Solar Centrifugal Deep Borehole Pump — Plastic Impeller & MPPT Controller

Brand:                                   HUOPSOLAR
Model:                                  S4PC(b)
Pump Type:                          Impeller-type solar submersible pump

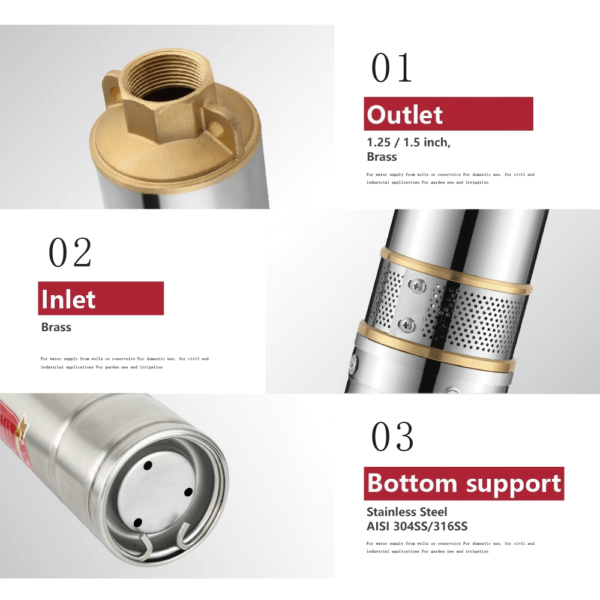

Outlet:                                  1.25/2.0 inches
Pump Diameter:                   4 inches / 95 mm
Applications:                        Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                             2 years
Packaging Type:                   Wooden crate

Category: Brand:

This 4-inch solar DC centrifugal submersible well pump is designed for reliable water pumping in off-grid and remote areas. Powered directly by solar panels, it requires no traditional electricity or fuel, providing an eco-friendly, energy-efficient, and cost-effective solution for remote water supply.

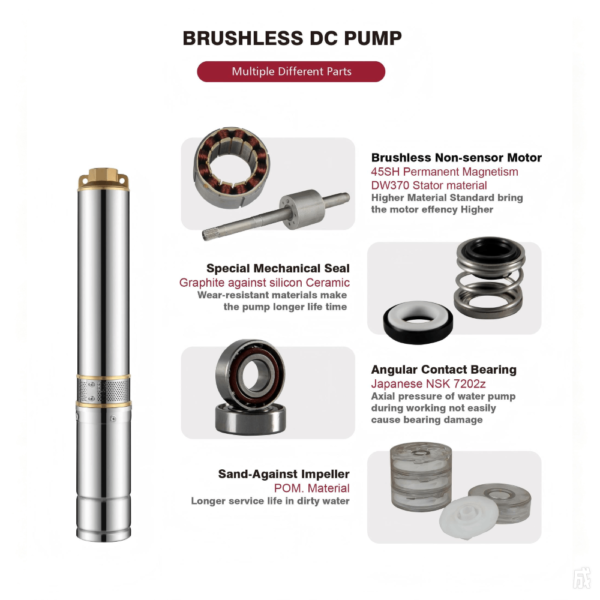

Equipped with an MPPT controller and high-efficiency brushless DC motor, the pump ensures stable operation and efficient solar energy utilization. Its DC screw design maintains a steady water flow even in deep wells or low-yield water sources while reducing maintenance needs. Ideal for agricultural irrigation, livestock watering, farms, gardens, and rural water supply, this durable solar pump provides a sustainable and long-lasting pumping solution.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A S4PC3.5-50-48-400B 48V 30-110V 400W 200-900W 3.5m³/h 50m 1.25 " 2m SSCO ＜150V
B S4PC3.5-65-72-600B 72V 50-170V 600W 300-1200W 3.5m³/h 65m 1.25 " 2m SSCO ＜200V
C S4PC3.5-95-96-750B 96V 60-220V 750W 400-1600W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
D S4PC3.5-95-120-900B 110V 60-220V 900W 400-1500W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
E S4PC3.5-110-110-1100B 110V 60-220V 1100W 400-1600W 3.5m³/h 110m 1.25 " 2m SSCO ＜250V
F S4PC3.5-110-150-1100B 150V 80-260V 1100W 400-1600W 3.5m³/h 110m 1.25 " 2m SSCO ＜450V
G S4PC4.0-35-48-400B 48V 30-110V 400W 200-900W 4.0m³/h 35m 1.25 " 2m SSCO ＜150V
H S4PC4.0-50-72-600B 72V 50-170V 400W 300-1200W 4.0m³/h 50m 1.25 " 2m SSCO ＜200V
I S4PC4.0-70-96-750B 96V 60-220V 600W 400-1600W 4.0m³/h 70m 1.25 " 2m SSCO ＜250V
J S4PC4.0-80-120-900B 110V 60-220V 750W 400-1500W 4.0m³/h 80m 1.25 " 2m SSCO ＜250V
K S4PC4.0-95-110-1100B 110V 60-220V 1100W 400-1600W 4.0m³/h 95m 1.25 " 2m SSCO ＜250V
L S4PC4.0-95-150-1100B 150V 80-260V 1100W 400-1600W 4.0m³/h 95m 1.25 " 2m SSCO ＜450V
M S4PC4.5-130-110-1500B 110V 60-220V 1500W 600-1800W 4.5m³/h 130m 1.25 " 2m SSCO ＜250V
N S4PC4.5-130-200-1500B 200V 120-300V 1500W 600-1800W 4.5m³/h 130m 1.25 " 2m SSCO ＜450V
O S4PC4.5-190-300-2200B 300V 80-400V 2200W 1200-2800W 4.5m³/h 190m 1.25 " 2m SSCO ＜450V
P S4PC6-32-48-400B 48V 30-110V 400W 200-900W 6.0m³/h 32m 1.25 " 2m SSCO ＜150V
Q S4PC6-42-72-600B 72V 50-170V 600W 300-1200W 6.0m³/h 42m 1.25 " 2m SSCO ＜200V
R S4PC6-56-96-750B 96V 60-220V 750W 400-1600W 6.0m³/h 56m 1.25 " 2m SSCO ＜250V
S S4PC6-84-110-1100B 110V 60-220V 1100W 400-1600W 6.0m³/h 84m 1.25 " 2m SSCO ＜250V
T S4PC6-112-110-1300B 110V 60-200V 1300W 600-1800W 6.0m³/h 112m 1.25 " 2m SSCO ＜250V
U S4PC6-135-110-1500B 110V 60-220V 1500W 600-1800W 6.0m³/h 135m 1.25 " 2m SSCO ＜250V
V S4PC6-84-150-1100B 150V 80-260V 1100W 400-1600W 6.0m³/h 84m 1.25 " 2m SSCO ＜450V
W S4PC6-112-180-1300B 200V 120-300V 1300W 600-1800W 6.0m³/h 112m 1.25 " 2m SSCO ＜450V
X S4PC6-135-200-1500B 200V 120-300V 1500W 600-1800W 6.0m³/h 135m 1.25 " 2m SSCO ＜450V
Y S4PC6-175-300-2200B 300V 80-400V 2200W 1200-2800W 6.0m³/h 175m 1.25 " 2m SSCO ＜450V
Z S4PC9-45-96-750B 96V 60-220V 750W 400-1600W 9.0m³/h 45m 2.0 " 2m SSCO ＜250V
AA S4PC9-58-110-1100B 110V 60-220V 1100W 400-1600W 9.0m³/h 58m 2.0 " 2m SSCO ＜250V
AB S4PC9-71-110-1300B 110V 60-220V 1300W 600-1800W 9.0m³/h 71m 2.0 " 2m SSCO ＜250V
AC S4PC9-85-110-1500B 110V 60-220V 1500W 600-1800W 9.0m³/h 85m 2.0 " 2m SSCO ＜250V
AD S4PC9-58-150-1100B 150V 80-260V 1100W 400-1600W 9.0m³/h 58m 2.0 " 2m SSCO ＜450V
AE S4PC9-71-180-1300B 200V 120-300V 1300W 600-1800W 9.0m³/h 71m 2.0 " 2m SSCO ＜450V
AF S4PC9-85-200-1500B 200V 120-300V 1500W 600-1800W 9.0m³/h 85m 2.0 " 2m SSCO ＜450V
AG S4PC9-125-300-2200B 300V 80-400V 2200W 1200-2800W 9.0m³/h 125m 2.0 " 2m SSCO ＜450V
AH S4PC13-36-96-750B 96V 60-220V 750W 400-1600W 13m³/h 36m 2.0 " 2m SSCO ＜250V
AI S4PC13-49-110-1100B 110V 60-220V 1100W 400-1600W 13m³/h 49m 2.0 " 2m SSCO ＜250V
AJ S4PC13-54-110-1300B 110V 60-220V 1300W 600-1800W 13m³/h 54m 2.0 " 2m SSCO ＜250V
AK S4PC13-60-110-1500B 110V 60-220V 1500W 600-1800W 13m³/h 60m 2.0 " 2m SSCO ＜250V
AL S4PC13-49-150-1100B 150V 80-260V 1100W 400-1600W 13m³/h 49m 2.0 " 2m SSCO ＜450V
AM S4PC13-54-180-1300B 200V 120-300V 1300W 600-1800W 13m³/h 54m 2.0 " 2m SSCO ＜450V
AN S4PC13-60-200-1500B 200V 120-300V 1500W 600-1800W 13m³/h 60m 2.0 " 2m SSCO ＜450V
AO S4PC13-110-300-2200B 300V 80-400V 2200W 1200-2800W 13m³/h 110m 2.0 " 2m SSCO ＜450V
AP S4PC17-48-110-1500B 110V 60-220V 1500W 600-1800W 17m³/h 48m 2.0 " 2m SSCO ＜250V
AQ S4PC17-48-200-1500B 200V 120-300V 1500W 600-1800W 17m³/h 48m 2.0 " 2m SSCO ＜450V

Head(m) 114.03 111.58 104.64 99.44 87.61 72 51.4 28.86 5.3 0.81
Flow(m3/h) 1.11 2.05 3 4.08 5.01 6.02 7.14 8.07 9.08 9.12
Head(m) 70 68 67 66 65 63 62 59 56 49 39 26 17 0.7
Flow(m3/h) 0 0.45 1.07 1.59 2.12 2.56 2.98 3.45 4.15 5.1 6.13 7.01 8.12 9.12
Head(m) 83 79 75 70 63 55 43 30 17 3
Flow(m3/h) 0.1 1 2 3 4 5 6 7 8 8.9
Head(m) 56 54 52 51 50 47 44 39 31 20 9 0.7
Flow(m3/h) 0 1.04 2.1 2.49 3.05 3.6 4 5.11 5.96 6.99 7.93 9.07
Head(m) 70 68 67 66 65 63 62 59 56 49 39 26 17 0.7
Flow(m3/h) 0 0.45 1.07 1.59 2.12 2.56 2.98 3.45 4.15 5.1 6.13 7.01 8.12 9.12
Head(m) 83 79 75 70 63 55 43 30 17 3
Flow(m3/h) 0.1 1 2 3 4 5 6 7 8 8.9
Head(m) 35 32 28 25 21 13 5 1
Flow(m3/h) 0.2 2 4 6 8 10 12 12.8
Head(m) 48.85 46.71 44.16 42.32 38.04 33.96 30.9 27.23 23.55 20.09 15.29 10.4 3.36 1.62
Flow(m3/h) 0 1.02 2.01 3.07 4.03 5.04 6.04 7.07 8.02 9 10.09 11.03 12.07 12.83
Head(m) 53 49 44 38 31 20 8 2
Flow(m3/h) 0.1 2 4 6 8 10 12 12.9
Head(m) 56.09 51.81 50.07 48.34 41.4 36 27.23 21.11 10.19 2.44
Flow(m3/h) 1.51 3.11 4.09 4.53 6.1 7.45 9.07 10.51 12.04 13.02
Head(m) 48.85 46.71 44.16 42.32 38.04 33.96 30.9 27.23 23.55 20.09 15.29 10.4 3.36 1.62
Flow(m3/h) 0 1.02 2.01 3.07 4.03 5.04 6.04 7.07 8.02 9 10.09 11.03 12.07 12.83
Head(m) 53 49 44 38 31 20 8 2
Flow(m3/h) 0.1 2 4 6 8 10 12 12.9
Head(m) 56.09 51.81 50.07 48.34 41.4 36 27.23 21.11 10.19 2.44
Flow(m3/h) 1.51 3.11 4.09 4.53 6.1 7.45 9.07 10.51 12.04 13.02
Head(m) 100 90 80 65 50 30 20 10
Flow(m3/h) 2 3.3 4.2 6.3 8.3 10.8 11.6 12.5
Head(m) 47 45 42 39 34 28 21 13 5 1
Flow(m3/h) 0.3 2 4 6 8 10 12 14 16 17
Head(m) 47 45 42 39 34 28 21 13 5 1
Flow(m3/h) 0.3 2 4 6 8 10 12 14 16 17

● 1 x 4-inch DC solar centrifugal pump with a 2-meter cable
● 1 x Pump controller with MPPT function
● 1 x Stainless steel float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
