6SC-PV150 Solar Water Pumping System with Inverter for Deep-Well Agricultural Irrigation

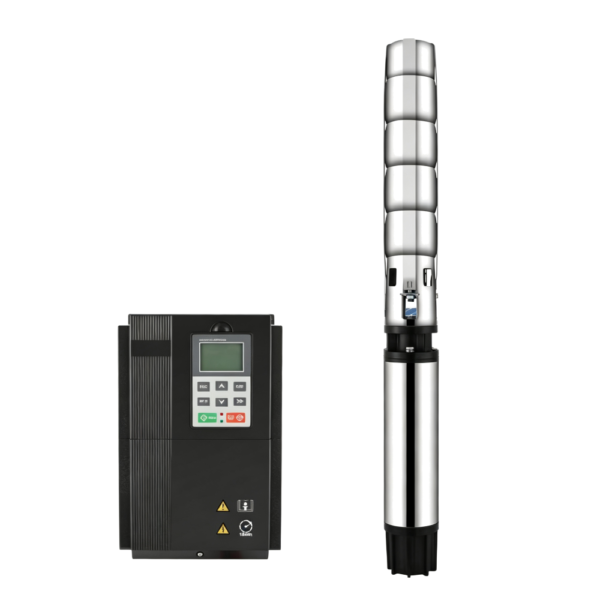

The 6SC-PV150 is a solar water pumping system with a solar pump inverter and AC motor, designed for deep-well irrigation, groundwater supply, and agricultural water applications.

Brand:
HUOPSOLAR
Model:
6SC-PV150
Pump Type:
Solar Submersible Pump (Impeller Type)
Outlet:
3-inch / 4-inch
Pump Diameter:
6-inch / 125mm
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging:
Wooden crate
Motor:
220V/380V AC motor
Controller:
Solar water pump inverter
Controller Protection Rating:
IP65
Customization:
OEM accepted
Minimum Order Quantity (MOQ):
5 sets
Category: Brand:

The 6SC-PV150 is a solar-powered pumping system designed to draw groundwater from deep wells for irrigation and water supply. The submersible pump works with a solar pump inverter and AC motor, making the system suitable for applications where water needs to be lifted from below-ground sources and delivered to fields, gardens, storage points, or other water-use locations. Its deep-well pumping configuration can support projects that depend on groundwater as a source for agricultural and daily water needs.

As a solar submersible water pump and solar borehole pump, the 6SC-PV150 is suitable for deep-well irrigation, village and town water supply, clean drinking water, garden watering, and drip irrigation. It can also be used as a solar agricultural water pump or solar water pump for irrigation for farms, livestock watering, and other agricultural projects where groundwater is an important water source.

Picture Model Motor Power Rated Flow Rated Head The best use the flow head >>> Product Technical Specification
Three phase KW HP m³/h m L/min 0 166 250 333 416 500  Solar Pump Inverter Model Rated Flow Rated Head The best use the flow head Rated Output Current (A)
380-415V- 50Hz m³/h 0 10 15 20 25 30
A 6SP20-17-2-1.5 1.5 2 20 17 Head（m） 22 21 19 17 12 6 ZFPV500_4T2.2 1.5 230-800 5.8 5.5
B 6SP20-26-3-2.2 2.2 3 20 26 33 31 29 26 18 10 ZFPV500_4T3 2.2 230-800 11 9.5
C 6SP20-34-4-3 3 4 20 34 44 41 38 34 24 13 ZFPV500_4T4 3 230-800 11 9.5
D 6SP20-51-6-4 4 5.5 20 51 66 62 57 51 36 19 ZFPV500_4T5.5 4 230-800 14.6 13
E 6SP20-68-8-5.5 5.5 7.5 20 68 88 82 76 68 54 29 ZFPV500_4T7.5 5.5 230-800 20.5 17
F 6SP20-94-11-7.5 7.5 10 20 94 121 113 105 94 66 35 ZFPV500_4T9.2 7.5 230-800 26 25
G 6SP20-111-13-9.2 9.2 12.5 20 111 145 136 125 111 78 41 ZFPV500_4T11 9.2 230-800 26 25
H 6SP20-136-16-11 11 15 20 136 176 165 152 136 96 51 ZFPV500_4T13 11 230-800 35 32
I 6SP20-162-19-13 13 17.5 20 162 209 196 181 162 114 61 ZFPV500_4T15 13 230-800 35 32
J 6SP20-187-22-15 15 20 20 187 242 227 209 187 132 70 ZFPV500_4T18.5 15 230-800 38.5 37
K 6SP20-230-27-18.5 18.5 25 20 230 297 278 257 230 162 86 ZFPV500_4T22 18.5 230-800 46.5 45
L 6SP20-272-32-22 22 30 20 272 352 330 304 272 192 102 ZFPV500_4T30 22 230-800 62 60
M 6SP20-323-38-30 26 35 20 323 418 391 361 323 228 122 ZFPV500_4T37 26 230-800 62 60
Picture Model Motor Power Rated Flow Rated Head The best use the flow head >>> Product Technical Specification
Three phase L/min 0 333 500 666 750 833  Solar Pump Inverter Model Rated powerOutput (KW) DC Input Voltage Range(V) Rated Input Current (A) Rated Output Current (A)
380-415V- 50Hz KW HP m³/h m m³/h 0 20 30 40 45 50
N 6SP40-18-2-3 3 4 40 18 Head（m） 26 25 21 18 16 13 ZFPV500_4T4 3 230-800 11 9.5
O 6SP40-27-3-5.5 5.5 7.5 40 27 40 37 32 27 25 20 ZFPV500_4T7.5 5.5 230-800 20.5 17
P 6SP40--36-4-7.5 7.5 10 40 36 53 50 43 36 32 26 ZFPV500_4T9.2 7.5 230-800 26 25
Q 6SP40-46-5-7.5 7.5 10 40 46 67 63 54 46 41 33 ZFPV500_4T9.2 7.5 230-800 26 25
R 6SP40-55-6-9.2 9.2 12.5 40 55 80 75 65 55 49 40 ZFPV500_4T11 9.2 230-800 26 25
S 6SP40-64-7-11 11 15 40 64 94 88 75 64 57 47 ZFPV500_4T13 11 230-800 35 32
T 6SP40-74-8-13 13 17.5 40 74 107 101 86 74 65 54 ZFPV500_4T15 13 230-800 35 32
U 6SP40-92-10-15 15 20 40 92 134 126 108 92 82 67 ZFPV500_4T18.5 15 230-800 38.5 37
V 6SP40-110-12-18.5 18.5 25 40 110 161 151 130 110 98 80 ZFPV500_4T22 18.5 230-800 46.5 45
W 6SP40-129-14-22 22 30 40 129 188 176 151 129 115 94 ZFPV500_4T26 22 230-800 62 60
X 6SP40-156-17-26 26 35 40 156 228 214 184 156 139 114 ZFPV500_4T30 26 230-800 62 60
Y 6SP40-184-20-30 30 40 40 184 268 252 216 184 164 134 ZFPV500_4T37 30 230-800 76 75
Z 6SP40-221-24-37 37 45 40 221 322 302 259 221 196 161 ZFPV500_4T45 37 230-800 92 91
Picture Model Motor Power Rated Flow Rated Head The best use the flow head >>> Product Technical Specification
Three phase L/min 0 666 833 916 1000 1083  Solar Pump Inverter Model Rated powerOutput (KW) DC Input Voltage Range(V) Rated Input Current (A) Rated Output Current (A)
380-415V- 50Hz KW HP m³/h m m³/h 0 40 50 55 60 65
AA 6SP60-31-4-7.5 7.5 10 60 31 Head（m） 56 40 36 34 31 28 ZFPV500_4T9.2 7.5 230-800 26 25
AB 6SP60-39-5-9.2 9.2 12.5 60 39 70 51 45 42 39 34 ZFPV500_4T11 9.2 230-800 26 25
AC 6SP60-46-6-11 11 15 60 46 84 61 54 50 46 41 ZFPV500_4T15 11 230-800 35 32
AD 6SP60-62-8-15 15 20 60 62 112 82 72 67 62 55 ZFPV500_4T18.5 15 230-800 38.5 37
AE 6SP60-70-9-18.5 18.5 25 60 70 126 93 81 75 70 62 ZFPV500_4T18.5 18.5 230-800 46.5 45
AF 6SP60-78-10-18.5 18.5 25 60 78 140 103 90 84 78 69 ZFPV500_4T22 18.5 230-800 46.5 45
AG 6SP60-86-11-22 22 30 60 86 154 116 100 93 86 76 ZFPV500_4T22 22 230-800 62 60
AH 6SP60-94-12-22 22 30 60 94 168 124 110 102 94 83 ZFPV500_4T26 22 230-800 62 60
AI 6SP60-102-13-26 26 35 60 102 182 136 118 110 102 90 ZFPV500_4T26 26 230-800 62 60
AJ 6SP60-110-14-26 26 35 60 110 196 146 128 119 110 97 ZFPV500_4T26 26 230-800 62 60
AK 6SP60-117-15-26 26 35 60 117 210 155 135 126 117 104 ZFPV500_4T30 26 230-800 62 60
AL 6SP60-125-16-30 30 40 60 125 224 168 145 135 125 111 ZFPV500_4T37 30 230-800 76 75

Head(m) 145 136 125 111 78 41
Flow(m3/h) 0 10 15 20 25 30
Head(m) 176 165 152 136 96 51
Flow(m3/h) 0 10 15 20 25 30
Head(m) 209 196 181 162 114 61
Flow(m3/h) 0 10 15 20 25 30
Head(m) 22 21 19 17 12 6
Flow(m3/h) 0 10 15 20 25 30
Head(m) 242 227 209 187 132 70
Flow(m3/h) 0 10 15 20 25 30
Head(m) 297 278 257 230 162 86
Flow(m3/h) 0 10 15 20 25 30
Head(m) 33 31 29 26 18 10
Flow(m3/h) 0 10 15 20 25 30
Head(m) 352 330 304 272 192 102
Flow(m3/h) 0 10 15 20 25 30
Head(m) 418 391 361 323 228 122
Flow(m3/h) 0 10 15 20 25 30
Head(m) 44 41 38 34 24 13
Flow(m3/h) 0 10 15 20 25 30
Head(m) 66 62 57 51 36 19
Flow(m3/h) 0 10 15 20 25 30
Head(m) 88 82 76 68 54 29
Flow(m3/h) 0 10 15 20 25 30
Head(m) 121 113 105 94 66 35
Flow(m3/h) 0 10 15 20 25 30
Head(m) 161 151 130 110 98 80
Flow(m3/h) 0 20 30 40 45 50
Head(m) 188 176 151 129 115 94
Flow(m3/h) 0 20 30 40 45 50
Head(m) 228 214 184 156 139 114
Flow(m3/h) 0 20 30 40 45 50
Head(m) 26 25 21 18 16 13
Flow(m3/h) 0 20 30 40 45 50
Head(m) 268 252 216 184 164 134
Flow(m3/h) 0 20 30 40 45 50
Head(m) 322 302 259 221 196 161
Flow(m3/h) 0 20 30 40 45 50
Head(m) 40 37 32 27 25 20
Flow(m3/h) 0 20 30 40 45 50
Head(m) 53 50 43 36 32 26
Flow(m3/h) 0 20 30 40 45 50
Head(m) 67 63 54 46 41 33
Flow(m3/h) 0 20 30 40 45 50
Head(m) 80 75 65 55 49 40
Flow(m3/h) 0 20 30 40 45 50
Head(m) 94 88 75 64 57 47
Flow(m3/h) 0 20 30 40 45 50
Head(m) 107 101 86 74 65 54
Flow(m3/h) 0 20 30 40 45 50
Head(m) 134 126 108 92 82 67
Flow(m3/h) 0 20 30 40 45 50
Head(m) 182 136 118 110 102 90
Flow(m3/h) 0 40 50 55 60 65
Head(m) 196 146 128 119 110 97
Flow(m3/h) 0 40 50 55 60 65
Head(m) 210 155 135 126 117 104
Flow(m3/h) 0 40 50 55 60 65
Head(m) 224 168 145 135 125 111
Flow(m3/h) 0 40 50 55 60 65

● 1 x 3-inch DC solar screw pump with a 2-meter cable
● 1 x Pump outlet connector
● 1 x Cable connector kit
● 1 x Waterproof splicing kit
