I3PC(b) 3 Inch Built-in MPPT Solar Centrifugal Submersible Borehole Pump with Plastic Impeller

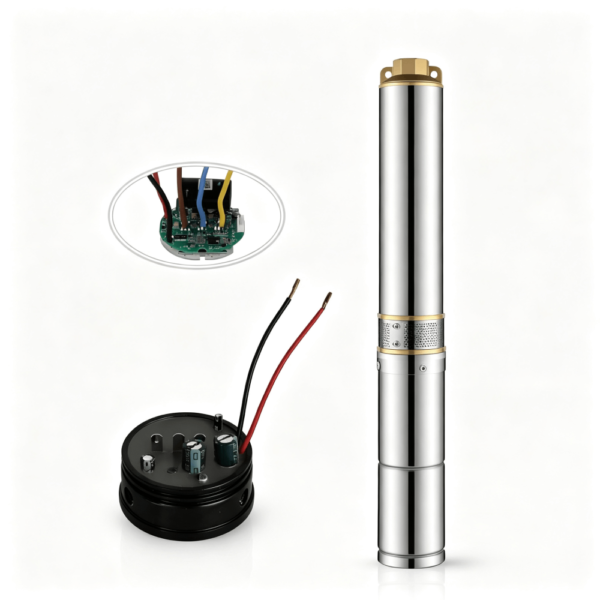

The I3PC(b) is a 3-inch solar centrifugal pump with a built-in MPPT controller and plastic impeller, designed for borehole water supply, domestic water use, drinking water, and small-area irrigation.

Brand:
HUOPSOLAR
Model:
I3PC(b)
Pump Type:
Solar Submersible Pump (Impeller Type)

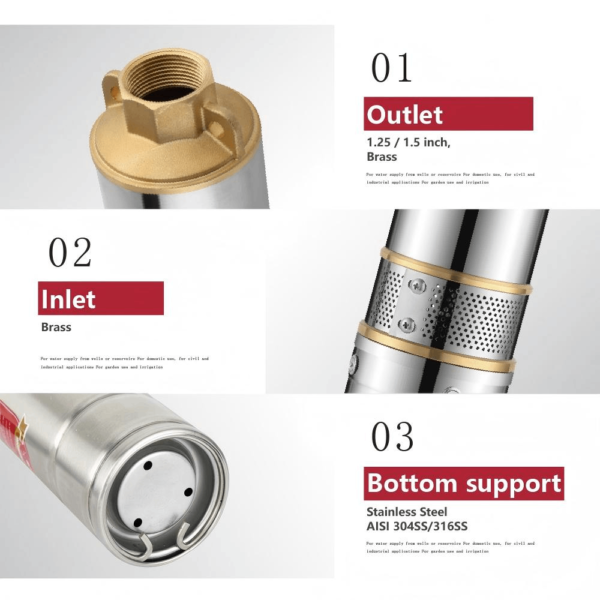

Outlet:
1.25/1.5 inches
Pump Diameter:
3 inches / 75 mm
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging Type:
Wooden crate
Category: Brand:

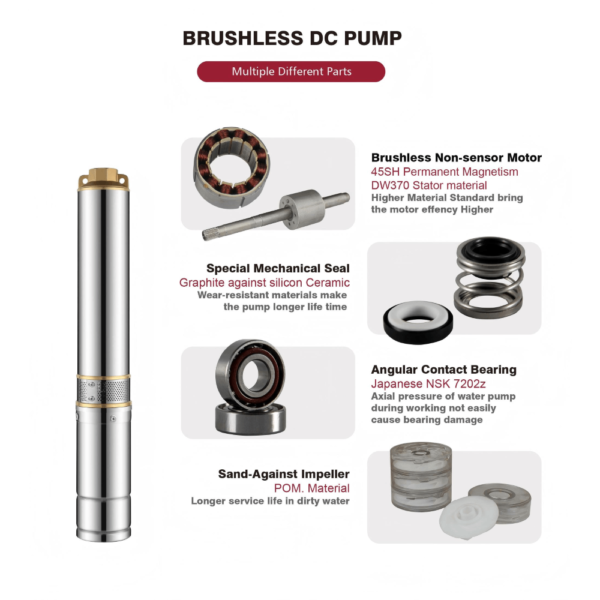

The I3PC(b) is a built-in MPPT solar centrifugal pump designed for submersible water pumping from boreholes and deep wells, particularly in areas with limited access to grid electricity. Its centrifugal impeller design and brushless DC motor are suited to groundwater pumping for irrigation and water supply, while the integrated MPPT controller allows the pump to work as part of a solar-powered pumping setup without relying on a separate external controller. This makes it suitable for remote sites where a practical and self-contained water pumping solution is needed.

As a solar submersible water pump and solar borehole pump, the I3PC(b) can be used for deep-well irrigation, village and town water supply, clean drinking water, garden watering, and drip irrigation. It is also suitable as a solar agricultural water pump for farms and other irrigation projects. For rural and off-grid applications, the pump helps move groundwater from boreholes or deep wells to fields, gardens, livestock watering points, and other places where water is needed.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A I3PC3.0-25-24-200B 24V 20-55V 200W 80-500W 3.0m³/h 25m 1.25 " 2m SSCO ＜80V
B I3PC3.0-35-24-300B 24V 20-55V 300W 80-500W 3.0m³/h 35m 1.25 " 2m SSCO ＜80V
C I3PC3.5-47-48-400B 48V 30-110V 400W 200-900W 3.5m³/h 47m 1.25 " 2m SSCO ＜150V
D I3PC3.5-80-72-600B 72V 50-170V 600W 300-1200W 3.5m³/h 80m 1.25 " 2m SSCO ＜200V
E I3PC3.5-95-96-750B 96V 60-220V 750W 400-1600W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
F I3PC3.8-123-110-1100B 110V 60-220V 1100W 400-1600W 3.8m³/h 123m 1.25 " 2m SSCO ＜250V
G I3PC3.8-155-110-1300B 110V 60-220V 1300W 600-1800W 3.8m³/h 155m 1.25 " 2m SSCO ＜250V
H I3PC3.8-180-110-1500B 110V 60-220V 1500W 600-1800W 3.8m³/h 180m 1.25 " 2m SSCO ＜250V
I I3PC5.2-45-48-500B 48V 30-110V 500W 200-900W 5.2m³/h 45m 1.5 " 2m SSCO ＜150V
J I3PC5.2-50-72-600B 72V 50-170V 600W 300-1200W 5.2m³/h 50m 1.5 " 2m SSCO ＜200V
K I3PC5.2-75-96-750B 96V 60-220V 750W 400-1600W 5.2m³/h 75m 1.5 " 2m SSCO ＜250V
L I3PC6-84-110-1100B 110V 60-220V 1100W 400-1600W 6.0m³/h 84m 1.5 " 2m SSCO ＜250V
M I3PC6-125-110-1500B 110V 60-220V 1500W 600-1800W 6.0m³/h 125m 1.5 " 2m SSCO ＜250V
N I3PC7.5-43-96-750B 96V 60-220V 750W 400-1600W 7.5m³/h 43m 1.5 " 2m SSCO ＜250V
O I3PC7.5-62-110-1100B 110V 60-220V 1100W 400-1600W 7.5m³/h 62m 1.5 " 2m SSCO ＜250V
P I3PC7.5-78-110-1500B 110V 60-220V 1500W 600-1800W 7.5m³/h 78m 1.5 " 2m SSCO ＜250V

Head(m) 25 23 20 18 15 10 8 5
Flow(m3/h) 0.1 0.4 0.7 1.3 2.1 2.5 2.8 3.1
Head(m) 35 27.33 25.59 22.23 17.64 12.54 5.91 2.64
Flow(m3/h) 0.05 0.58 1.02 1.51 2.01 2.54 3 3.15
Head(m) 47 34.88 30.8 26.72 20.19 11.52 5.7 2.54
Flow(m3/h) 0.05 0.51 1.03 1.55 2.02 2.56 3 3.53
Head(m) 80 65.48 59.46 52.32 41.4 29.16 13.86 2.44
Flow(m3/h) 0.05 0.51 1.07 1.5 2.04 2.55 3.04 3.35
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 123 108.42 102.6 95.87 92.3 82.92 76.39 65.88 56.81 47.12 35.39 22.53 3.05
Flow(m3/h) 0.05 0.32 0.6 0.92 1.21 1.53 1.81 2.11 2.41 3.73 3.06 3.38 3.68
Head(m) 154 144.42 133.61 130.14 117.19 100.67 85.16 67.01 49.05 24.78 3.15
Flow(m3/h) 0.05 0.45 0.82 1.22 1.6 2.03 2.41 2.87 3.2 3.65 3.86
Head(m) 178 165.13 158.5 143.4 122.19 100.97 76.19 45.69 5.91
Flow(m3/h) 0.05 0.53 1.02 1.5 2.07 2.55 3.02 3.53 4.03
Head(m) 49.97 49.36 46.61 43.04 39.77 36.2 32.02 27.43 21.62 16.11 9.89 4.38
Flow(m3/h) 0.17 0.55 1.02 1.51 2 2.54 3.01 3.53 4.06 4.54 5.04 5.34
Head(m) 73 59.66 54.36 50.18 45.28 41.1 37.12 29.78 22.94 12.95 2.24
Flow(m3/h) 0.05 0.54 1.05 1.58 2.03 2.58 3.07 3.58 4 4.52 5.24
Head(m) 82.92 81.9 79.35 76.9 73.43 68.84 63.84 55.79 45.59 33.24 14.58 6.52
Flow(m3/h) 0.53 1 1.53 2.03 2.53 3.09 3.5 4.04 4.55 5.02 5.54 5.8
Head(m) 123.62 119.74 109.95 101.58 92.3 82 73.94 61.91 50.07 34.67 7.95
Flow(m3/h) 0.53 1.05 1.53 2.01 2.5 3.01 3.5 4 4.51 5 5.7
Head(m) 40 35 30 25 20 15 10 5
Flow(m3/h) 2.5 3.3 4.2 4.8 5.4 5.9 6.5 7.3
Head(m) 61.09 60.58 59.97 59.15 57.83 56.09 53.95 51.4 47.01 43.14 37.63 31.71 23.76 9.17
Flow(m3/h) 0.53 1.03 1.53 2.02 2.52 3.03 3.54 4 4.52 5.03 5.53 6.05 6.54 7.25
Head(m) 79.25 79.04 78.94 77.1 75.47 70.27 64.86 57.83 51.09 46.5 39.36 31.1 20.7 8.56
Flow(m3/h) 0.48 1.01 2.09 2.53 3.07 3.56 4.01 4.57 5.09 5.55 6 6.52 7.08 7.58

● 1 x 3-inch DC solar centrifugal pump with a 2-meter cable
● 1 x Pump outlet connector
● 1 x Cable connector kit
● 1 x Waterproof splicing kit
