I4PC 4 Inch Built-in MPPT Solar Centrifugal Submersible Borehole Pump with Plastic Impeller

The I4PC is a 4-inch solar centrifugal pump with a built-in MPPT controller and plastic impeller, designed for borehole water supply, drinking water, and small-area irrigation. It has 1.25- and 2.0-inch outlet options for different pumping configurations.

Brand:
HUOPSOLAR
Model:
I4PC
Pump Type:
Solar Submersible Pump (Impeller Type)

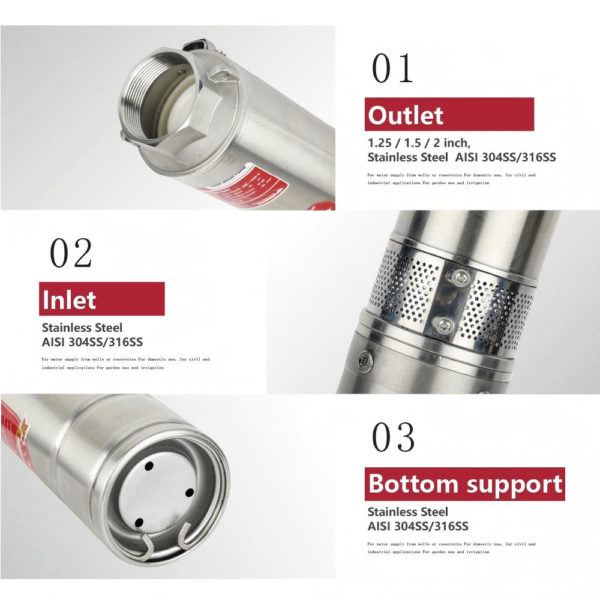

Outlet:
1.25/2.0 inches
Pump Diameter:
4 inches / 95 mm
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
1 year
Packaging:
Wooden crate
Category: Brand:

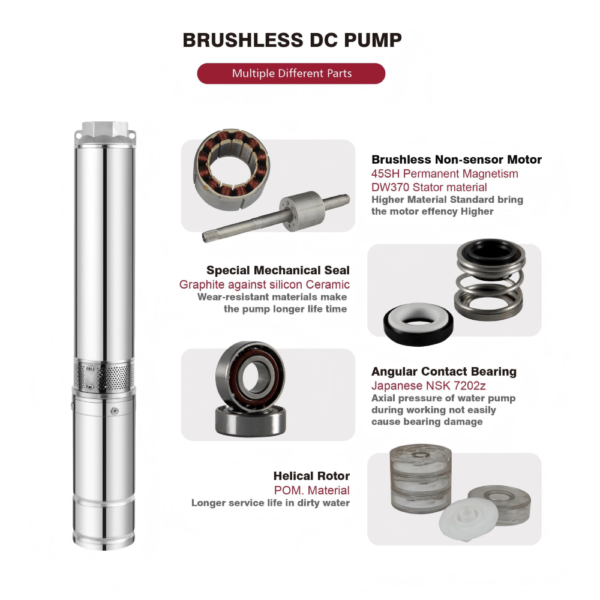

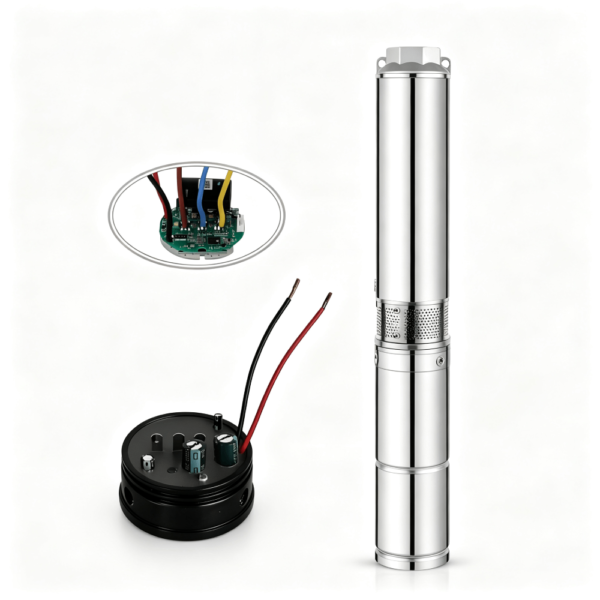

The I4PC is a built-in MPPT solar centrifugal pump designed for submersible water pumping in boreholes and deep wells, particularly for locations where access to grid electricity is limited. Its centrifugal impeller design, brushless DC motor, and integrated MPPT controller are suited to applications that need a practical solar-powered water pumping setup. The pump can be used to bring water from below-ground sources to the point of use for irrigation, water supply, and other daily water needs.

As a solar submersible water pump and solar borehole pump, the I4PC is suitable for deep-well irrigation, village and town water supply, clean drinking water, garden watering, and drip irrigation. It can also serve as a solar agricultural water pump for farms and other irrigation projects. The centrifugal design makes it a suitable solar centrifugal water pump for users who need to move groundwater from boreholes or deep wells to fields, gardens, or water-use points.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A I4PC3.5-50-48-400D 48V 30-110V 400W 200-900W 3.5m³/h 50m 1.25 " 2m SSCO ＜150V
B I4PC3.5-65-72-600D 72V 50-170V 600W 300-1200W 3.5m³/h 65m 1.25 " 2m SSCO ＜200V
C I4PC3.5-95-96-750D 96V 60-220V 750W 400-1600W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
D I4PC3.5-95-120-900D 110V 60-220V 900W 400-1500W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
E I4PC3.5-110-110-1100D 110V 60-220V 1100W 400-1600W 3.5m³/h 110m 1.25 " 2m SSCO ＜250V
F I4PC4.0-35-48-400D 48V 30-110V 400W 200-900W 4.0m³/h 35m 1.25 " 2m SSCO ＜150V
G I4PC4.0-50-72-600D 72V 50-170V 400W 300-1200W 4.0m³/h 50m 1.25 " 2m SSCO ＜200V
H I4PC4.0-70-96-750D 96V 60-220V 600W 400-1600W 4.0m³/h 70m 1.25 " 2m SSCO ＜250V
I I4PC4.0-80-120-900D 110V 60-220V 750W 400-1500W 4.0m³/h 80m 1.25 " 2m SSCO ＜250V
J I4PC4.0-95-110-1100D 110V 60-220V 1100W 400-1600W 4.0m³/h 95m 1.25 " 2m SSCO ＜250V
K I4PC4.5-130-110-1500D 110V 60-220V 1500W 600-1800W 4.5m³/h 130m 1.25 " 2m SSCO ＜250V
L I4PC6-32-48-400D 48V 30-110V 400W 200-900W 6.0m³/h 32m 1.25 " 2m SSCO ＜150V
M I4PC6-42-72-600D 72V 50-170V 600W 300-1200W 6.0m³/h 42m 1.25 " 2m SSCO ＜200V
N I4PC6-56-96-750D 96V 60-220V 750W 400-1600W 6.0m³/h 56m 1.25 " 2m SSCO ＜250V
O I4PC6-84-110-1100D 110V 60-220V 1100W 400-1600W 6.0m³/h 84m 1.25 " 2m SSCO ＜250V
P I4PC6-112-110-1300D 110V 60-200V 1300W 600-1800W 6.0m³/h 112m 1.25 " 2m SSCO ＜250V
Q I4PC6-135-110-1500D 110V 60-220V 1500W 600-1800W 6.0m³/h 135m 1.25 " 2m SSCO ＜250V
R I4PC9-45-96-750D 96V 60-220V 750W 400-1600W 9.0m³/h 45m 2.0 " 2m SSCO ＜250V
S I4PC9-58-110-1100D 110V 60-220V 1100W 400-1600W 9.0m³/h 58m 2.0 " 2m SSCO ＜250V
T I4PC9-71-110-1300D 110V 60-220V 1300W 600-1800W 9.0m³/h 71m 2.0 " 2m SSCO ＜250V
U I4PC9-85-110-1500D 110V 60-220V 1500W 600-1800W 9.0m³/h 85m 2.0 " 2m SSCO ＜250V
V I4PC13-36-96-750D 96V 60-220V 750W 400-1600W 13m³/h 36m 2.0 " 2m SSCO ＜250V
W I4PC13-49-110-1100D 110V 60-220V 1100W 400-1600W 13m³/h 49m 2.0 " 2m SSCO ＜250V
X I4PC13-54-110-1300D 110V 60-220V 1300W 600-1800W 13m³/h 54m 2.0 " 2m SSCO ＜250V
Y I4PC13-60-110-1500D 110V 60-220V 1500W 600-1800W 13m³/h 60m 2.0 " 2m SSCO ＜250V
Z I4PC17-48-110-1500D 110V 60-220V 1500W 600-1800W 17m³/h 48m 2.0 " 2m SSCO ＜250V

Head(m) 55 50 45 40 35 30 20 10
Flow(m3/h) 10 45 88 110 127 135 169 200
Head(m) 60 55 50 45 40 30 20 10
Flow(m3/h) 10 45 88 110 127 135 169 200
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 32 28 24 20 16 12 8 5
Flow(m3/h) 0.2 0.8 1.7 2.9 3.7 4.2 4.9 5.5
Head(m) 43 40 37 35 32 27 25 20 17 12 7 3
Flow(m3/h) 0 1.07 1.57 2.02 2.54 3.11 3.61 4.09 4.52 5.04 5.56 5.91
Head(m) 57 55 48 46 41 38 33 28 23 17 10 3
Flow(m3/h) 0 0.54 1.51 2 2.54 2.95 3.47 4.08 4.52 5.03 5.61 6.05
Head(m) 82.92 81.9 79.35 76.9 73.43 68.84 63.84 55.79 45.59 33.24 14.58 6.52
Flow(m3/h) 0.53 1 1.53 2.03 2.53 3.09 3.5 4.04 4.55 5.02 5.54 5.8
Head(m) 109 103 97 90 85 78 69 60 52 40 31 19 7 4
Flow(m3/h) 0 0.55 0.98 1.45 1.95 2.46 2.97 3.52 3.94 4.57 5.04 5.57 6.03 6.14
Head(m) 133.1 122.09 119.74 111.17 94.75 79.86 67.41 57.72 48.44 36.2 22.43 6.42
Flow(m3/h) 0 0.63 1.02 1.54 2.05 2.51 3.04 3.5 4.03 4.53 5 5.39
Head(m) 50.99 50.07 48.03 42.73 33.96 26.82 18.86 10.91 2.03
Flow(m3/h) 1.08 2.04 3.05 4.05 5.08 6 7.05 8.07 9.04
Head(m) 56 54 52 51 50 47 44 39 31 20 9 0.7
Flow(m3/h) 0 1.04 2.1 2.49 3.05 3.6 4 5.11 5.96 6.99 7.93 9.07
Head(m) 70 68 67 66 65 63 62 59 56 49 39 26 17 0.7
Flow(m3/h) 0 0.45 1.07 1.59 2.12 2.56 2.98 3.45 4.15 5.1 6.13 7.01 8.12 9.12
Head(m) 83 79 75 70 63 55 43 30 17 3
Flow(m3/h) 0.1 1 2 3 4 5 6 7 8 8.9
Head(m) 35 32 28 25 21 13 5 1
Flow(m3/h) 0.2 2 4 6 8 10 12 12.8
Head(m) 48.85 46.71 44.16 42.32 38.04 33.96 30.9 27.23 23.55 20.09 15.29 10.4 3.36 1.62
Flow(m3/h) 0 1.02 2.01 3.07 4.03 5.04 6.04 7.07 8.02 9 10.09 11.03 12.07 12.83
Head(m) 53 49 44 38 31 20 8 2
Flow(m3/h) 0.1 2 4 6 8 10 12 12.9
Head(m) 56.09 51.81 50.07 48.34 41.4 36 27.23 21.11 10.19 2.44
Flow(m3/h) 1.51 3.11 4.09 4.53 6.1 7.45 9.07 10.51 12.04 13.02
Head(m) 47 45 42 39 34 28 21 13 5 1
Flow(m3/h) 0.3 2 4 6 8 10 12 14 16 17

● 1 x 4-inch DC solar centrifugal pump with a 2-meter cable
● 1 x Pump outlet connector
● 1 x Cable connector kit
● 1 x Waterproof splicing kit
