S3PCB 3-Inch Solar Centrifugal Submersible Pump | Plastic Impeller | MPPT Controller

Brand:                                   HUOPSOLAR
Model:                                  S3PC(b)
Pump Type:                          Impeller-type solar submersible pump

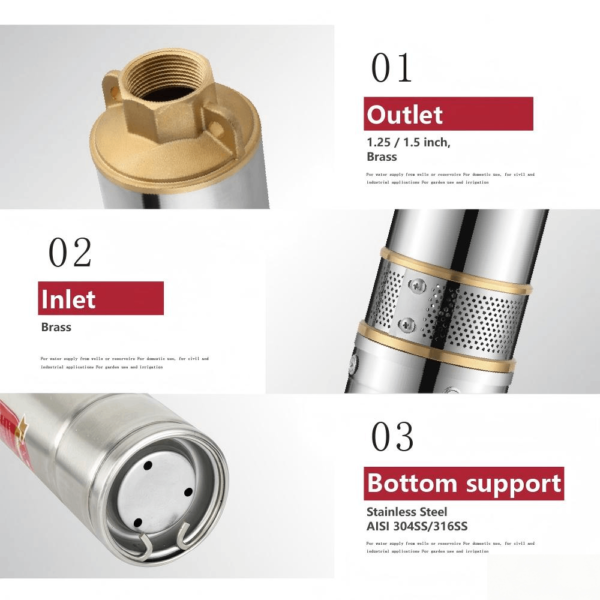

Outlet:                                  1.25/1.5 inches
Pump Diameter:                   3 inches / 75 mm
Applications:                        Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                             2 years
Packaging Type:                   Wooden crate

Category: Brand:

This 3-inch solar DC submersible deep well pump is designed for reliable water pumping in off-grid and remote areas. Powered directly by solar panels, it requires no grid electricity or fuel, making it an eco-friendly, energy-efficient, and cost-effective solution for various water pumping needs.

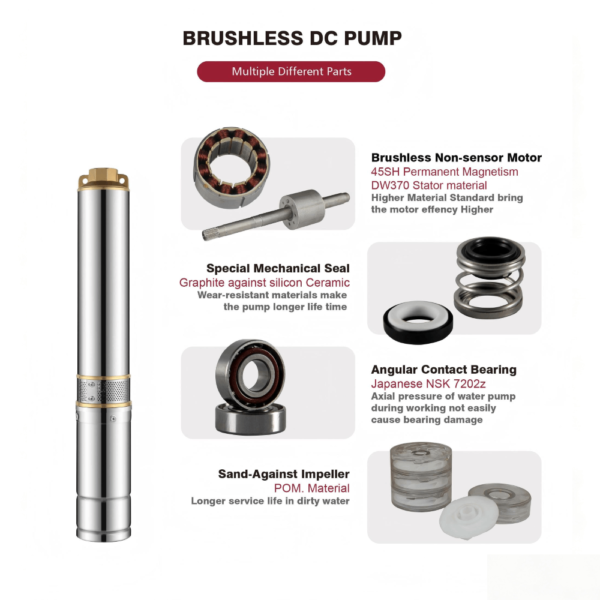

Equipped with an MPPT controller and high-efficiency brushless DC motor, the pump delivers stable performance and efficient solar energy utilization. Its DC impeller design provides a steady water flow even in deep wells or low-flow water sources while reducing maintenance needs. Ideal for agricultural irrigation, livestock watering, gardens, farms, and rural water supply, it offers a durable and sustainable pumping solution.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A S3PC3.0-25-24-200B 24V 20-55V 200W 80-500W 3.0m³/h 25m 1.25 " 2m SSCO ＜80V
B S3PC3.0-35-24-300B 24V 20-55V 300W 80-500W 3.0m³/h 35m 1.25 " 2m SSCO ＜80V
C S3PC3.5-47-48-400B 48V 30-110V 400W 200-900W 3.5m³/h 47m 1.25 " 2m SSCO ＜150V
D S3PC3.5-80-72-600B 72V 50-170V 600W 300-1200W 3.5m³/h 80m 1.25 " 2m SSCO ＜200V
E S3PC3.5-95-96-750B 96V 60-220V 750W 400-1600W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
F S3PC3.8-123-110-1100B 110V 60-220V 1100W 400-1600W 3.8m³/h 123m 1.25 " 2m SSCO ＜250V
G S3PC3.8-155-110-1300B 110V 60-220V 1300W 600-1800W 3.8m³/h 155m 1.25 " 2m SSCO ＜250V
H S3PC3.8-180-110-1500B 110V 60-220V 1500W 600-1800W 3.8m³/h 180m 1.25 " 2m SSCO ＜250V
I S3PC3.8-123-150-1100B 150V 80-260V 1100W 400-1600W 3.8m³/h 123m 1.25 " 2m SSCO ＜450V
J S3PC3.8-155-180-1300B 200V 120-300V 1300W 600-1800W 3.8m³/h 155m 1.25 " 2m SSCO ＜450V
K S3PC3.8-180-200-1500B 200V 120-300V 1500W 600-1800W 3.8m³/h 180m 1.25 " 2m SSCO ＜450V
L S3PC5.2-45-48-500B 48V 30-110V 500W 200-900W 5.2m³/h 45m 1.5 " 2m SSCO ＜150V
M S3PC5.2-50-72-600B 72V 50-170V 600W 300-1200W 5.2m³/h 50m 1.5 " 2m SSCO ＜200V
N S3PC5.2-75-96-750B 96V 60-220V 750W 400-1600W 5.2m³/h 75m 1.5 " 2m SSCO ＜250V
O S3PC6-84-110-1100B 110V 60-220V 1100W 400-1600W 6.0m³/h 84m 1.5 " 2m SSCO ＜250V
P S3PC6-125-110-1500B 110V 60-220V 1500W 600-1800W 6.0m³/h 125m 1.5 " 2m SSCO ＜250V
Q S3PC6-84-150-1100B 150V 80-260V 1100W 400-1600W 6.0m³/h 84m 1.5 " 2m SSCO ＜450V
R S3PC6-125-200-1500B 200V 120-300V 1500W 600-1800W 6.0m³/h 125m 1.5 " 2m SSCO ＜450V
S S3PC7.5-43-96-750B 96V 60-220V 750W 400-1600W 7.5m³/h 43m 1.5 " 2m SSCO ＜250V
T S3PC7.5-62-110-1100B 110V 60-220V 1100W 400-1600W 7.5m³/h 62m 1.5 " 2m SSCO ＜250V
U S3PC7.5-78-110-1500B 110V 60-220V 1500W 600-1800W 7.5m³/h 78m 1.5 " 2m SSCO ＜250V
V S3PC7.5-62-150-1100B 150V 80-260V 1100W 400-1600W 7.5m³/h 62m 1.5 " 2m SSCO ＜450V
W S3PC7.5-78-200-1500B 200V 120-300V 1500W 600-1800W 7.5m³/h 78m 1.5 " 2m SSCO ＜450V

Head(m) 25 23 20 18 15 10 8 5
Flow(m3/h) 0.1 0.4 0.7 1.3 2.1 2.5 2.8 3.1
Head(m) 35 27.33 25.59 22.23 17.64 12.54 5.91 2.64
Flow(m3/h) 0.05 0.58 1.02 1.51 2.01 2.54 3 3.15
Head(m) 47 34.88 30.8 26.72 20.19 11.52 5.7 2.54
Flow(m3/h) 0.05 0.51 1.03 1.55 2.02 2.56 3 3.53
Head(m) 80 65.48 59.46 52.32 41.4 29.16 13.86 2.44
Flow(m3/h) 0.05 0.51 1.07 1.5 2.04 2.55 3.04 3.35
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 123 108.42 102.6 95.87 92.3 82.92 76.39 65.88 56.81 47.12 35.39 22.53 3.05
Flow(m3/h) 0.05 0.32 0.6 0.92 1.21 1.53 1.81 2.11 2.41 3.73 3.06 3.38 3.68
Head(m) 123 108.42 102.6 95.87 92.3 82.92 76.39 65.88 56.81 47.12 35.39 22.53 3.05
Flow(m3/h) 0.05 0.32 0.6 0.92 1.21 1.53 1.81 2.11 2.41 3.73 3.06 3.38 3.68
Head(m) 178 165.13 158.5 143.4 122.19 100.97 76.19 45.69 5.91
Flow(m3/h) 0.05 0.53 1.02 1.5 2.07 2.55 3.02 3.53 4.03
Head(m) 123 108.42 102.6 95.87 92.3 82.92 76.39 65.88 56.81 47.12 35.39 22.53 3.05
Flow(m3/h) 0.05 0.32 0.6 0.92 1.21 1.53 1.81 2.11 2.41 3.73 3.06 3.38 3.68
Head(m) 154 144.42 133.61 130.14 117.19 100.67 85.16 67.01 49.05 24.78 3.15
Flow(m3/h) 0.05 0.45 0.82 1.22 1.6 2.03 2.41 2.87 3.2 3.65 3.86
Head(m) 178 165.13 158.5 143.4 122.19 100.97 76.19 45.69 5.91
Flow(m3/h) 0.05 0.53 1.02 1.5 2.07 2.55 3.02 3.53 4.03
Head(m) 49.97 49.36 46.61 43.04 39.77 36.2 32.02 27.43 21.62 16.11 9.89 4.38
Flow(m3/h) 0.17 0.55 1.02 1.51 2 2.54 3.01 3.53 4.06 4.54 5.04 5.34
Head(m) 73 59.66 54.36 50.18 45.28 41.1 37.12 29.78 22.94 12.95 2.24
Flow(m3/h) 0.05 0.54 1.05 1.58 2.03 2.58 3.07 3.58 4 4.52 5.24
Head(m) 82.92 81.9 79.35 76.9 73.43 68.84 63.84 55.79 45.59 33.24 14.58 6.52
Flow(m3/h) 0.53 1 1.53 2.03 2.53 3.09 3.5 4.04 4.55 5.02 5.54 5.8
Head(m) 123.62 119.74 109.95 101.58 92.3 82 73.94 61.91 50.07 34.67 7.95
Flow(m3/h) 0.53 1.05 1.53 2.01 2.5 3.01 3.5 4 4.51 5 5.7
Head(m) 82.92 81.9 79.35 76.9 73.43 68.84 63.84 55.79 45.59 33.24 14.58 6.52
Flow(m3/h) 0.53 1 1.53 2.03 2.53 3.09 3.5 4.04 4.55 5.02 5.54 5.8
Head(m) 123.62 119.74 109.95 101.58 92.3 82 73.94 61.91 50.07 34.67 7.95
Flow(m3/h) 0.53 1.05 1.53 2.01 2.5 3.01 3.5 4 4.51 5 5.7
Head(m) 40 35 30 25 20 15 10 5
Flow(m3/h) 2.5 3.3 4.2 4.8 5.4 5.9 6.5 7.3
Head(m) 61.09 60.58 59.97 59.15 57.83 56.09 53.95 51.4 47.01 43.14 37.63 31.71 23.76 9.17
Flow(m3/h) 0.53 1.03 1.53 2.02 2.52 3.03 3.54 4 4.52 5.03 5.53 6.05 6.54 7.25
Head(m) 79.25 79.04 78.94 77.1 75.47 70.27 64.86 57.83 51.09 46.5 39.36 31.1 20.7
Flow(m3/h) 0.48 1.01 2.09 2.53 3.07 3.56 4.01 4.57 5.09 5.55 6 6.52 7.08
Head(m) 61.09 60.58 59.97 59.15 57.83 56.09 53.95 51.4 47.01 43.14 37.63 31.71 23.76
Flow(m3/h) 0.53 1.03 1.53 2.02 2.52 3.03 3.54 4 4.52 5.03 5.53 6.05 6.54
Head(m) 79.25 79.04 78.94 77.1 75.47 70.27 64.86 57.83 51.09 46.5 39.36 31.1 20.7
Flow(m3/h) 0.48 1.01 2.09 2.53 3.07 3.56 4.01 4.57 5.09 5.55 6 6.52 7.08

● 1 x 3-inch DC solar centrifugal pump with a 2-meter cable

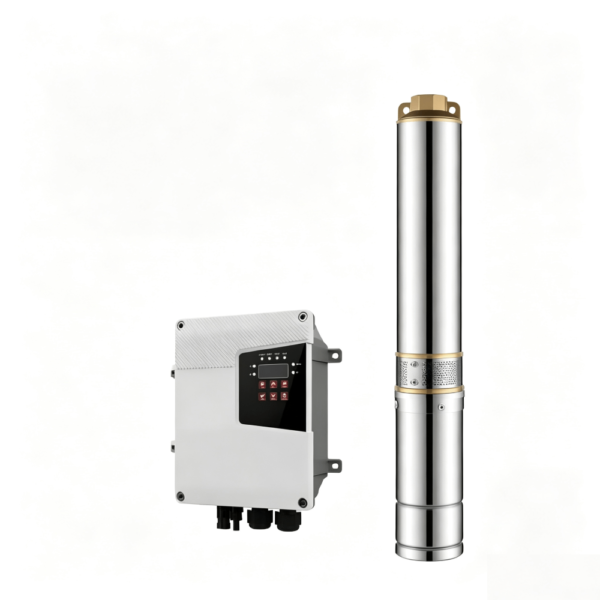

● 1 x Pump controller with MPPT function
● 1 x Plastic float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
