SSHF-L Solar Water Pump for Irrigation, DC Centrifugal Surface Pump with MPPT Controller

Cut fuel and electricity costs with the HUOPSOLAR SSHF-L, a DC centrifugal surface pump powered directly by solar panels — a dependable solar powered water pump for irrigation and household use.

Brand:
HUOPSOLAR
Model:
SSHF-L
Pump Type:
Centrifugal Solar Surface Pump
Outlet Size:
1″×1″, 2″×2″, 3″×3″, 4″×4″, 5″×5″
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging Type:
Wooden crate
Motor:
DC brushless motor
Controller:
DC MPPT controller
Controller Protection Rating:
IP65
Customization:
OEM accepted
Minimum Order Quantity:
5 sets
Category: Brand:

SSHF-L Solar Water Pump for Irrigation, DC Centrifugal Surface Pump with MPPT Controller

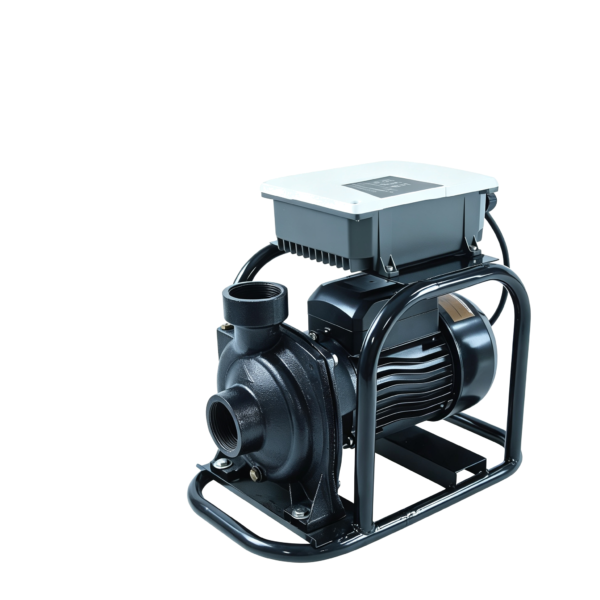

The HUOPSOLAR SSHF-L is a solar water pump for irrigation that runs straight from solar panels — no grid connection, no fuel bills, and no rising electricity costs. This DC centrifugal surface pump delivers reliable water in off-grid locations, making it an economical, environmentally friendly choice for farms, gardens, and remote communities.

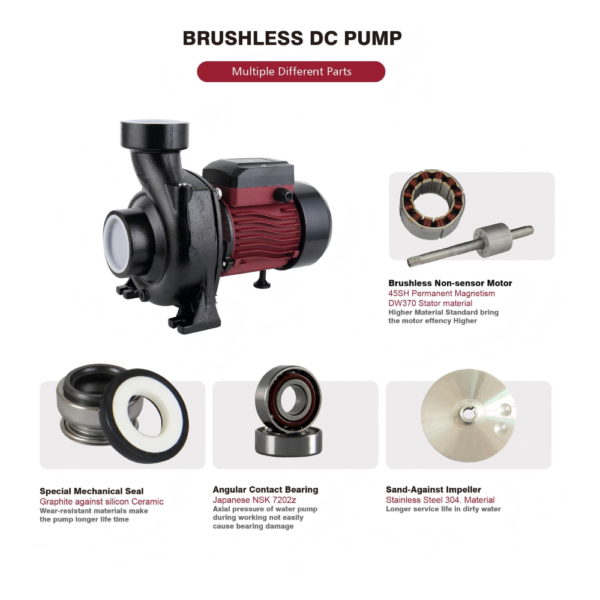

A brushless DC motor and IP65-rated MPPT controller keep efficiency high and maintenance low, even with shallow or inconsistent water sources. As a solar pump for agriculture, it fits a solar powered irrigation system for crop watering, livestock, and household supply — certified CE, ISO9001, GS and RoHS, with a 2-year warranty.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A SSHF6-24-72-550L 72V 50-170V 550W 300-1200W 6m³/h 24m 1.0×1.0 " 1m SSCO ＜200V
B SSHF15-14-48-550L 48V 30-110V 550W 200-900W 15m³/h 14m 2.0×2.0 " 1m SSCO ＜150V
C SSHF21-14-96-750L 96V 60-220V 750W 400-1600W 21m³/h 14m 2.0×2.0 " 1m SSCO ＜250V
D SSHF26-15-110-1100L 110V 60-220V 1100W 400-1600W 26m³/h 15m 2.0×2.0 " 1m SSCO ＜250V
E SSHF26-15-150-1100L 150V 80-260V 1100W 400-1600W 26m³/h 15m 2.0×2.0 " 1m SSCO ＜450V
F SSHF45-17-110-1500L 110V 60-220V 1500W 600-1800W 45m³/h 17m 3.0×3.0 " 1m SSCO ＜250V
G SSHF45-17-200-1500L 200V 120-300V 1500W 600-1800W 45m³/h 17m 3.0×3.0 " 1m SSCO ＜450V
H SSHF60-16-300-2200L 80-285V 80-430V 2200W 900-2800W 60m³/h 16m 4.0×4.0 " 1m SSCO ＜450V
I SSHF80-17-300-3000L 80-285V 80-430V 3000W 900-3500W 80m³/h 17m 5.0×5.0 " 1m SSCO ＜450V

Head(m) 24.5 22.2 20.9 19.3 17.8 16.3 15.2 12 9.5 7.3 5.3 0
Flow(m3/h) 0.5 1 1.5 2 2.5 3 3.5 4.5 5 5.5 5.9 0
Head(m) 14 12 10 8 6 4 2 1
Flow(m3/h) 2 4 6 8 10 12 13 15
Head(m) 14.5 14.2 14.1 13.8 13 12.2 11 9.1 7 5 3.7 0
Flow(m3/h) 2 4 6 8.1 10 12 14 16 18.1 20 21.5 0
Head(m) 15 14.9 14.8 14.6 14.3 13.8 12.5 11.3 9.5 7.1 6.5 0
Flow(m3/h) 2 2 6 8.1 10.1 12.1 14 16 18.1 20.1 20.8 0
Head(m) 15 14.9 14.8 14.6 14.3 13.8 12.5 11.3 9.5 7.1 6.5 0
Flow(m3/h) 2 2 6 8.1 10.1 12.1 14 16 18.1 20.1 20.8 0
Head(m) 15 14.4 13 11.5 10.3 8.9 7.4 6.2 4.8 3.4 2.9 2.3
Flow(m3/h) 1.2 5 10.3 15.1 20.8 25.3 30.1 35.1 40.2 46.1 46.8 47.2
Head(m) 15 14.4 13 11.5 10.3 8.9 7.4 6.2 4.8 3.4 2.9 2.3
Flow(m3/h) 1.2 5 10.3 15.1 20.8 25.3 30.1 35.1 40.2 46.1 46.8 47.2
Head(m) 15 14 12 10 8 6 4 2
Flow(m3/h) 15 25 36 45 51 53 56 58
Head(m) 16 15 12 10 8 6 4 2
Flow(m3/h) 20 30 42 53 61 63 66 57

● 1 DC solar water pump (including 1-meter cable)
● 1 Pump controller with MPPT function
● 1 Plastic float switch (water tank sensor)
● 1 Pump outlet connector
● 1 Cable connection kit
● 1 Waterproof connector kit
