SSQB DC Solar Surface Pump with Vortex Design, Brushless Motor and MPPT Controller

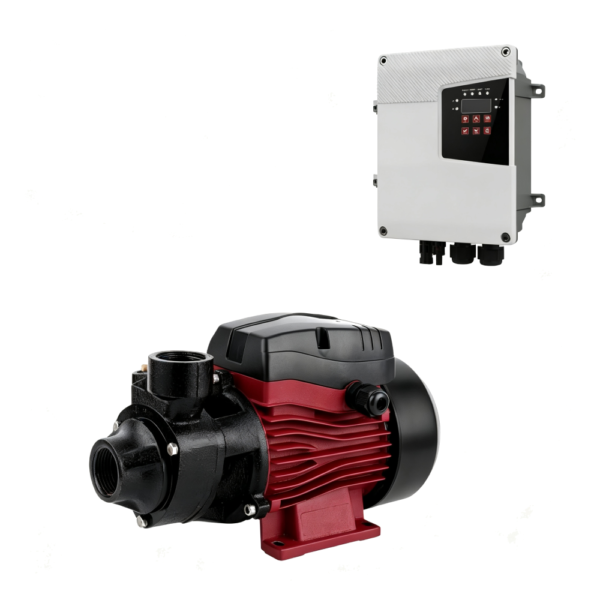

The HUOPSOLAR SSQB is a DC solar surface water pump with a vortex-type design, brushless DC motor, and MPPT controller for domestic water supply, drinking water, and small-area irrigation.

Brand:
HUOPSOLAR
Model:
SSQB
Pump Type:
Peripheral solar surface pump
Outlet/Inlet:
1 inch x 1 inch
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging:
Wooden crate
Motor:
DC brushless motor
Controller:
DC MPPT controller
Controller Protection Rating:
IP65
Customization:
OEM accepted
Minimum Order Quantity:
5 sets
Category: Brand:

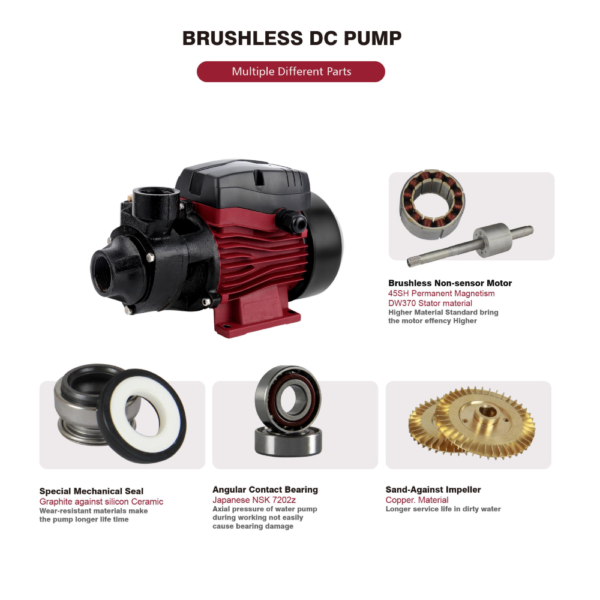

The SSQB is a vortex-type surface pump designed for applications that need a DC solar pumping setup above the water source. Its brushless DC motor works with a DC MPPT controller to form the core operating configuration, while the 1-inch inlet and outlet provide a compact connection arrangement. The model is intended for domestic water supply, drinking water, and small-area irrigation.
As a solar powered water pump from HUOPSOLAR, the SSQB provides an option for surface water pumping projects that use a DC system. OEM customization is available for specific project requirements, making the model suitable for buyers looking for a compact solar pump with a vortex surface-pump design.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A SSQB2-25-24-210 24V 20-55V 210W 80-500W 2.0m³/h 25m 1.0×1.0 " 1m SSCO ＜80V
B SSQB2-30-48-280 48V 30-110V 280W 200-900W 2.0m³/h 30m 1.0×1.0 " 1m SSCO ＜200V
C SSQB3-50-72-550 72V 50-170V 550W 300-1200W 3.0m³/h 50m 1.0×1.0 " 1m SSCO ＜200V
D SSQB3-65-96-750 96V 60-220V 750W 400-1600W 3.0m³/h 65m 1.0×1.0 " 1m SSCO ＜250V

Head(m) 25 20.7 18.05 14.68 11.42 8.25 5.7 3.26 1.11 0 0 0
Flow(m3/h) 0.05 0.21 0.6 0.81 0.99 1.2 1.4 1.6 1.77 0 0 0
Head(m) 24.55 23.55 22.94 22.02 17.74 15.39 13.25 11.11 8.56 6.01 0 0
Flow(m3/h) 0.21 0.42 0.62 0.79 0.99 1.2 1.39 1.59 1.81 1.95 0 0
Head(m) 46 38.34 32.02 24.37 19.47 12.95 9.27 4.07 2.03 0 0 0
Flow(m3/h) 0.05 0.4 0.8 1.2 1.59 2.01 2.4 2.8 3 0 0 0
Head(m) 61 51.4 46.61 41.4 36.41 28.96 23.96 19.07 14.48 10.7 5.91 2.13
Flow(m3/h) 0.05 0.3 0.59 0.92 1.2 1.51 1.81 2.1 2.4 2.71 3.01 3.3

● 1 x DC solar water pump (including 1m cable)
● 1 x Pump controller with MPPT function
● 1 x Stainless steel float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
