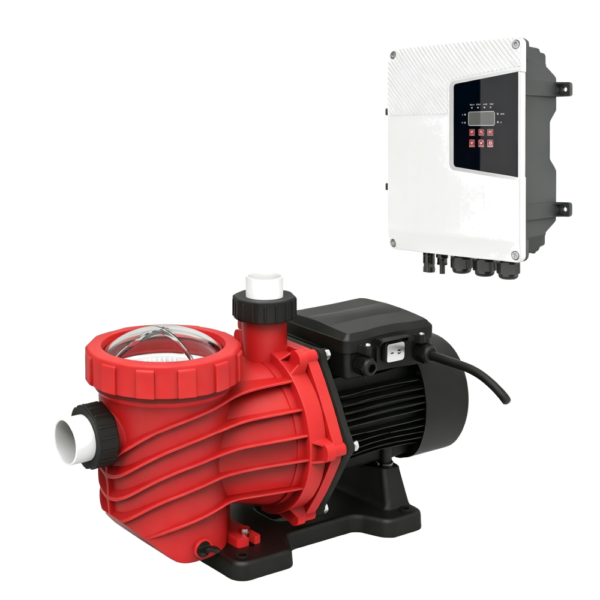

ZSSP-ADHY 1200W AC/DC Solar Pool Pump with MPPT Controller

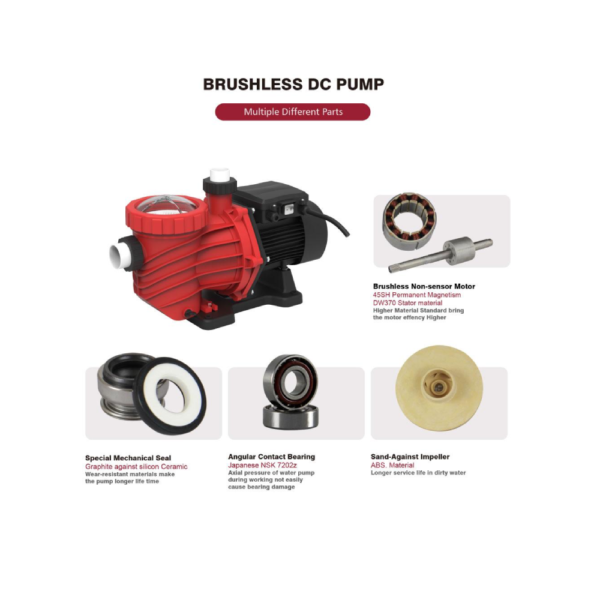

The ZSSP-ADHY is a 1200W AC/DC hybrid solar water pump designed for swimming pools and water parks. It features a brushless DC motor, impeller design, and AC/DC MPPT controller with IP65 protection.
Brand:
HUOPSOLAR
Model:
ZSSP-ADHY (AC/DC)
Pump Type:
Impeller-type solar swimming pool pump
Outlet:
2.0 inches
Pump Material:
ABS plastic
Applications:
Swimming pools, water parks
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging Type:
Wooden crate
Motor:
DC brushless motor
Controller:
AC/DC hybrid MPPT controller
Controller Protection Rating:
IP65
Customization Support:
OEM accepted
Minimum Order Quantity:
5 sets
-
Product Details
-
Product Specifications
-
Product Accessories
The ZSSP-ADHY is an AC/DC hybrid solar water pump designed for swimming pool circulation and water treatment applications. Its impeller design, brushless DC motor, and MPPT controller work together to circulate pool water through the treatment system, making it suitable for maintaining water movement in residential and commercial pools as well as water parks. The hybrid power configuration also allows the pump to work with available AC or DC power sources.
As a solar powered water pump, the ZSSP-ADHY can be used for regular pool circulation where solar power is incorporated into the pumping system. It is suitable for swimming pools and water parks that need continuous water movement for circulation and treatment. The pump can also support other water circulation needs around pool facilities, making it a practical solar electric water pump for applications that require solar-assisted pumping without relying on a battery-based system.
| No. | Item | Rated AC Voltage | Rated DC Voltage | Rated Power | Optimum input Power(W) | Max. Flow | Max. Head | Outlet | Cable | Controller | Solar panel |
| Open circuit voltage (VOC) | |||||||||||
| A | ZSSP20-19-150-900-AD | 80-285V | 80-430V | 900W | 400-1600W | 20m³/h | 19m | 2.0×2.0 " | 1m | SSCO | ＜450V |
| B | ZSSP27-19-180-1200-AD | 80-285V | 80-430V | 1200W | 600-1800W | 27m³/h | 19m | 3.0×3.0 " | 1m | SSCO | ＜450V |
-
SSSP15-14-72-500
-
SSSP20-19-150-900
-
SSSP27-19-180-1200
| Head(m) | 13 | 12 | 11 | 10 | 8 | 7 | 4 | 0.6 | 0 |
| Flow(m3/h) | 0 | 1.98 | 3.89 | 5.84 | 8.07 | 9.4 | 11.95 | 15.18 | 0 |
| Head(m) | 19 | 18 | 17 | 12 | 9 | 6 | 0.9 | 0 | 0 |
| Flow(m3/h) | 0 | 4.02 | 8.4 | 11.29 | 14.61 | 16.28 | 19.42 | 0 | 0 |
| Head(m) | 18 | 17 | 16 | 12 | 8 | 5 | 1 | 0 | 0 |
| Flow(m3/h) | 0 | 2.09 | 7.93 | 16.55 | 21.27 | 24.01 | 26.18 | 0 | 0 |

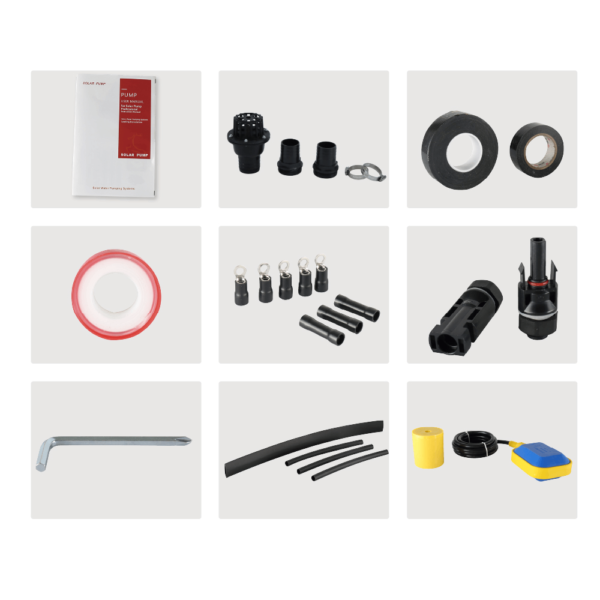

● 1 x AC/DC solar surface pump (includes 1m cable)
● 1 x AC/DC pump controller with MPPT function
● 1 x Plastic float switch (tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
