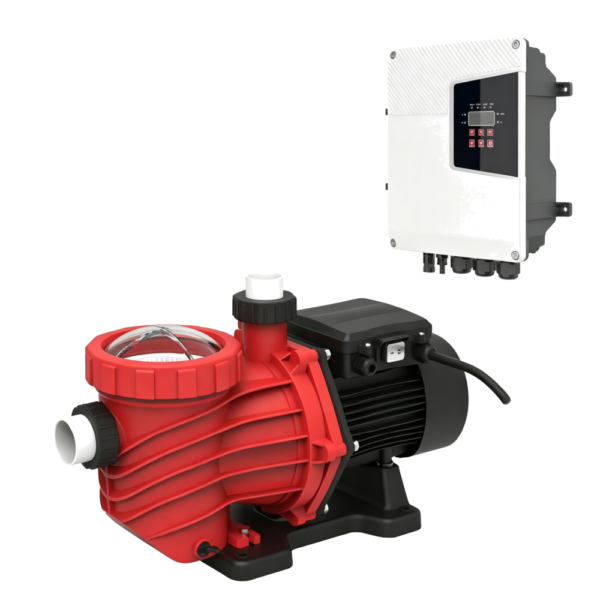

ZSSP-ADHY 900W AC/DC Hybrid Solar Pool Pump with MPPT Controller
The ZSSP-ADHY is a 900W AC/DC hybrid solar water pump designed for swimming pool and water park circulation. It features an ABS plastic impeller pump, brushless DC motor, and AC/DC hybrid MPPT controller with IP65 protection.
Brand:
HUOPSOLAR
Model:
ZSSP-ADHY (AC/DC)
Pump Type:
Impeller-type solar swimming pool pump
Outlet:
2.0 inches
Pump Material:
ABS plastic
Applications:
Swimming pools, water parks
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging Type:
Wooden crate
Motor:
DC brushless motor
Controller:
AC/DC hybrid MPPT controller
Controller Protection Rating:
IP65
Customization Support:
OEM accepted
Minimum Order Quantity:
5 sets
-
Product Details
-
Product Specifications
-
Product Accessories

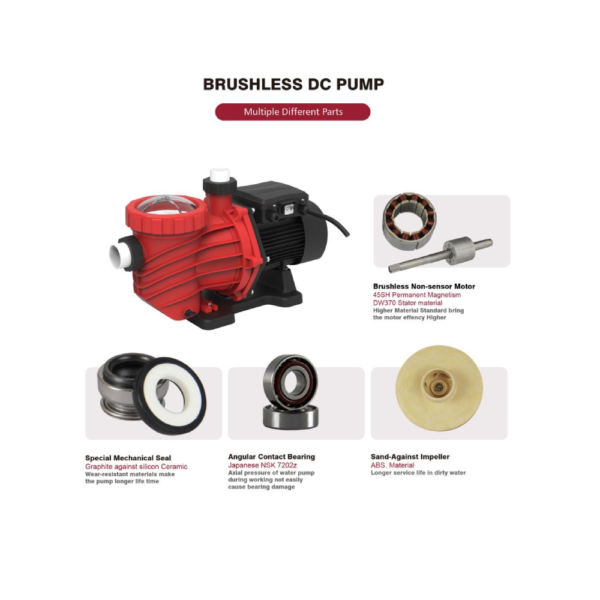

The ZSSP-ADHY is an AC/DC hybrid solar water pump designed for swimming pool circulation and water treatment systems. Its impeller design, brushless DC motor, and MPPT controller support solar-powered circulation for pools and water parks, helping move pool water through the circulation system for continuous treatment and reuse. The AC/DC hybrid configuration also allows the pump to operate with different available power sources when required.
As a solar powered water pump, the ZSSP-ADHY is suitable for residential and commercial swimming pools, water parks, and other pool circulation applications that need a solar-assisted water pumping solution. It can also be used in systems for garden watering and other water circulation needs. For swimming pool and water park applications that incorporate solar power into regular water circulation, the ZSSP-ADHY provides a practical pumping option.
| No. | Item | Rated AC Voltage | Rated DC Voltage | Rated Power | Optimum input Power(W) | Max. Flow | Max. Head | Outlet | Cable | Controller | Solar panel |
| Open circuit voltage (VOC) | |||||||||||
| A | ZSSP20-19-150-900-AD | 80-285V | 80-430V | 900W | 400-1600W | 20m³/h | 19m | 2.0×2.0 " | 1m | SSCO | ＜450V |
| B | ZSSP27-19-180-1200-AD | 80-285V | 80-430V | 1200W | 600-1800W | 27m³/h | 19m | 3.0×3.0 " | 1m | SSCO | ＜450V |
-
SSSP15-14-72-500
-
SSSP20-19-150-900
-
SSSP27-19-180-1200
| Head(m) | 13 | 12 | 11 | 10 | 8 | 7 | 4 | 0.6 | 0 |
| Flow(m3/h) | 0 | 1.98 | 3.89 | 5.84 | 8.07 | 9.4 | 11.95 | 15.18 | 0 |
| Head(m) | 19 | 18 | 17 | 12 | 9 | 6 | 0.9 | 0 | 0 |
| Flow(m3/h) | 0 | 4.02 | 8.4 | 11.29 | 14.61 | 16.28 | 19.42 | 0 | 0 |
| Head(m) | 18 | 17 | 16 | 12 | 8 | 5 | 1 | 0 | 0 |
| Flow(m3/h) | 0 | 2.09 | 7.93 | 16.55 | 21.27 | 24.01 | 26.18 | 0 | 0 |
● 1 x AC/DC solar surface pump (includes 1m cable)
● 1 x AC/DC pump controller with MPPT function
● 1 x Plastic float switch (tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
