1 HP ZSHF-ADHY Agricultural Solar Irrigation Pump

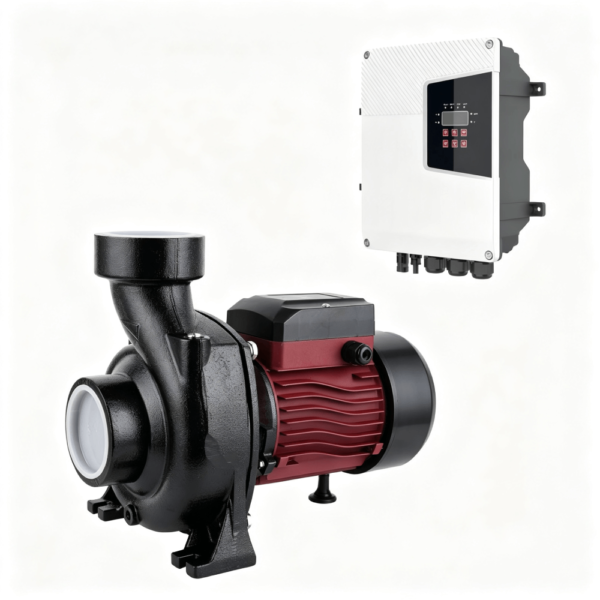

This HUOPSOLAR solar irrigation pump is an AC/DC hybrid centrifugal surface water pump designed for agricultural irrigation, domestic water supply, drinking water, and small-area irrigation.

Brand:
HUOPSOLAR
Model:
ZSHF-ADHY
Pump Type:
Centrifugal solar surface pump

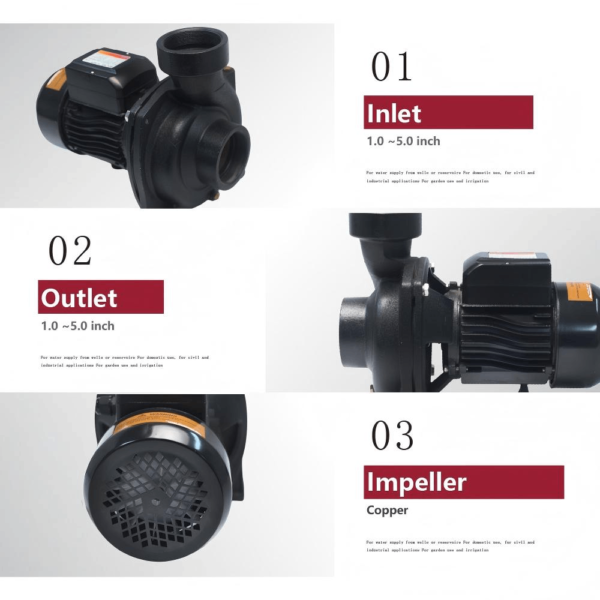

Outlet/Inlet:
1″×1″, 2″×2″, 3″×3″, 4″×4″, 5″×5″
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging:
Wooden crate
Motor:
DC brushless motor
Controller:
AC/DC hybrid MPPT controller
Controller Protection Rating:
IP65
Customization:
OEM supported
Minimum Order Quantity:
5 sets
Category: Brand:

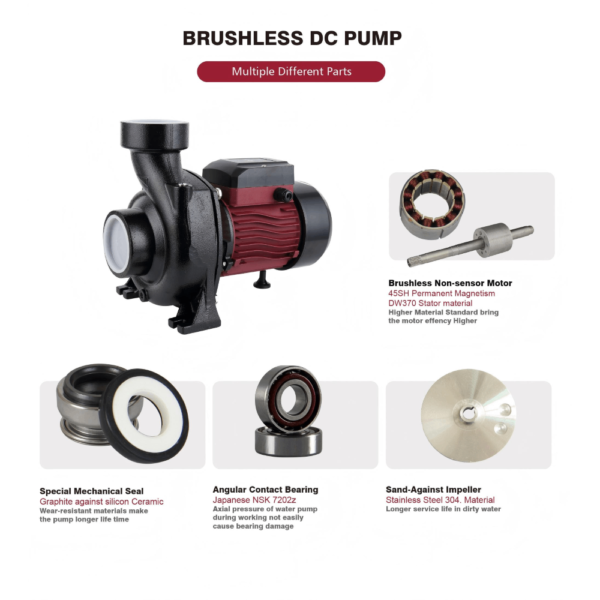

This 1HP solar irrigation pump is positioned for agricultural water pumping with a centrifugal surface-pump design and an AC/DC hybrid configuration. The system combines a brushless DC motor with a hybrid MPPT controller, while the surface-pump structure makes it suitable for applications such as agricultural irrigation, garden watering, and drip irrigation. The official HUOPSOLAR product page also presents the related ZSHF-ADHY range with multiple power configurations, so the 1HP designation should be understood in the context of the specific product configuration rather than as a description of every pump in the series.

For buyers looking for a solar agricultural water pump, this model focuses on the combination of centrifugal pumping, hybrid AC/DC operation, and irrigation use. It can also be considered for domestic water supply, drinking water, and other surface water applications when the selected pump configuration matches the project's flow and head requirements.

NO. Item Rated AC Voltage Rated DC Voltage Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A ZSHF6-24-72-550-AD 80-285V 80-430V 550W 300-1200W 6m³/h 24m 1.0×1.0 " 1m SSCO ＜200V
B ZSHF21-14-96-750-AD 80-285V 80-430V 750W 400-1600W 21m³/h 14m 2.0×2.0 " 1m SSCO ＜250V
C ZSHF26-15-150-1100-AD 80-285V 80-430V 1100W 400-1600W 26m³/h 15m 2.0×2.0 " 1m SSCO ＜450V
D ZSHF45-17-200-1500-AD 80-285V 80-430V 1500W 600-1800W 45m³/h 17m 3.0×3.0 " 1m SSCO ＜450V
E ZSHF60-16-300-2200-AD 80-285V 80-430V 2200W 900-2800W 60m³/h 16m 4.0×4.0 " 1m SSCO ＜450V
F ZSHF80-17-300-3000-AD 80-285V 80-430V 3000W 900-3500W 80m³/h 17m 5.0×5.0 " 1m SSCO ＜450V

Head(m) 24.47 22.23 20.9 19.27 17.84 16.31 15.19 12.03 9.48 7.34 5.3
Flow(m3/h) 0.51 1.04 1.52 2.01 2.48 3.04 3.47 4.46 4.99 5.45 5.88
Head(m) 14.48 14.17 14.07 13.76 12.95 12.23 11.01 9.07 7.03 4.99 3.66
Flow(m3/h) 2.02 4 6 8.06 10.03 12.04 14 16 18.06 20.01 21.52
Head(m) 14.99 14.88 14.78 14.58 14.27 13.76 12.54 11.31 9.48 7.13 6.52
Flow(m3/h) 2.02 2.02 6.04 8.14 10.08 12.06 14.01 16.03 18.08 20.05 20.81
Head(m) 15 14.37 12.95 11.52 10.29 8.87 7.44 6.21 4.79 3.36 2.85 2.25
Flow(m3/h) 1.2 5.01 10.25 15.08 20.76 25.28 30.08 35.13 40.23 46.1 46.83 47.18
Head(m) 15 14 12 10 8 6 4 2
Flow(m3/h) 15 25 36 45 51 53 56 58
Head(m) 16 15 12 10 8 6 4 2
Flow(m3/h) 20 30 42 53 61 63 66 57

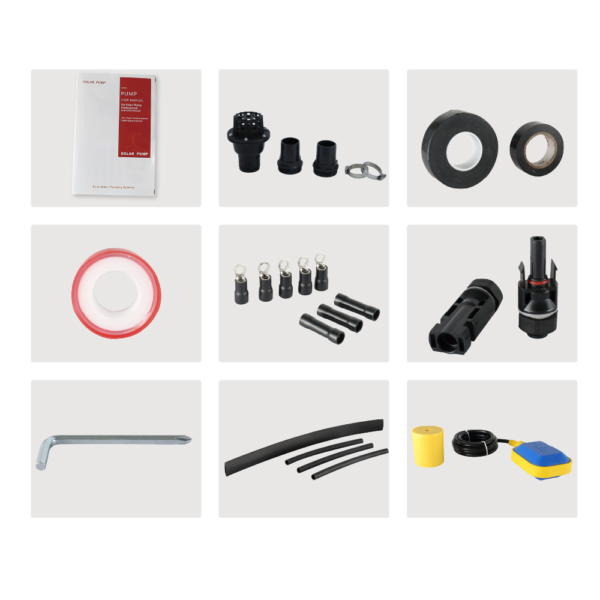

● 1 x AC/DC solar surface pump (includes 1m cable)
● 1 x AC/DC pump controller with MPPT function
● 1 x Plastic float switch (tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
