ZSQB-ADHY AC/DC Hybrid Solar Surface Pump, Peripheral Design with MPPT Controller

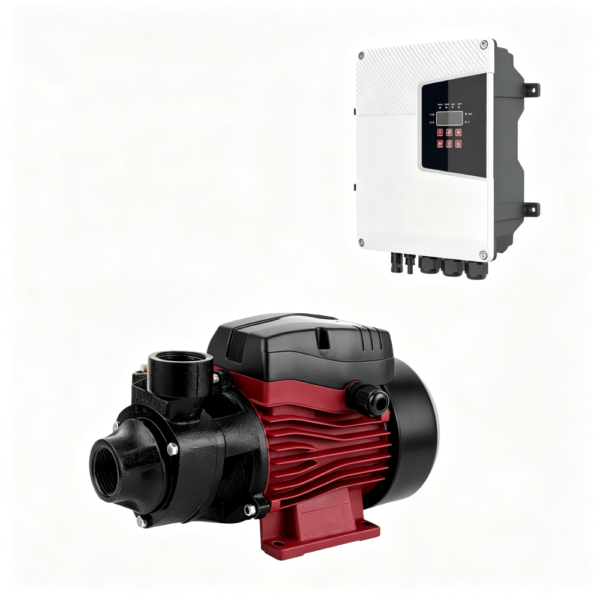

The HUOPSOLAR ZSQB-ADHY is an AC/DC hybrid solar surface water pump with a peripheral pump design, brushless DC motor, and MPPT controller for domestic water supply, drinking water, and small-area irrigation.

Brand:
HUOPSOLAR
Model:
ZSQB-ADHY
Pump Type:
Peripheral Solar Surface Pump
Outlet/Inlet:
1 inch x 1 inch
Pump Diameter:
4 inches / 95 mm
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging Type:
Wooden crate
Minimum Order Quantity:
5 sets
Category: Brand:

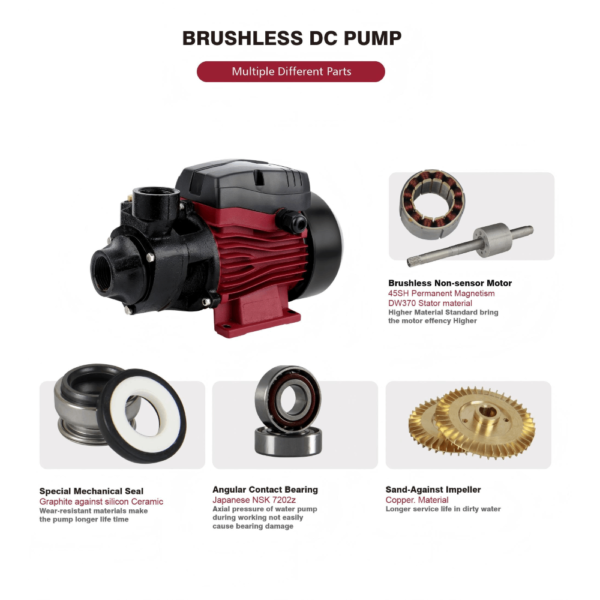

The ZSQB-ADHY combines a peripheral surface-pump design with an AC/DC hybrid power configuration. Its brushless DC motor works with a hybrid MPPT controller, giving the model a different operating setup from DC-only surface pumps. The pump is designed for domestic water supply, drinking water, and small-area irrigation, making its peripheral structure and hybrid power configuration key factors when selecting a solar pumping system.

For projects that require more than a dedicated DC power arrangement, the ZSQB-ADHY provides an AC/DC hybrid option in HUOPSOLAR's solar surface pump range. The model also supports OEM customization, allowing buyers to discuss project-specific requirements for a solar water pump based on the intended application.

No. Item Rated AC Voltage Rated DC Voltage Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A ZSQB3-50-72-550-AD 80-285V 80-430V 550W 300-1200W 3.0m³/h 50m 1.0×1.0 " 1m SSCO ＜200V
B ZSQB3-65-96-750-AD 80-285V 80-430V 750W 400-1600W 3.0m³/h 65m 1.0×1.0 " 1m SSCO ＜250V

Head(m) 46 38.34 32.02 24.37 19.47 12.95 9.27 4.07 2.03
Flow(m3/h) 0.05 0.4 0.8 1.2 1.59 2.01 2.4 2.8 3
Head(m) 61 51.4 46.61 41.4 36.41 28.96 23.96 19.07 14.48 10.7 5.91 2.13
Flow(m3/h) 0.05 0.3 0.59 0.92 1.2 1.51 1.81 2.1 2.4 2.71 3.01 3.3

● 1 x AC/DC solar surface pump (includes 1m cable)
● 1 x AC/DC pump controller with MPPT function
● 1 x Plastic float switch (tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
