I3PC 3 Inch Built-in MPPT Solar Centrifugal Submersible Borehole Pump with Plastic Impeller

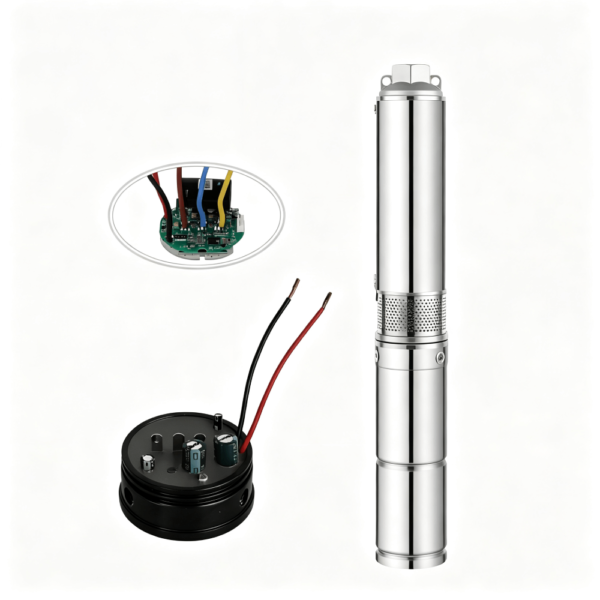

The I3PC is a 3-inch solar centrifugal pump with a built-in DC MPPT controller and plastic impeller, designed for borehole water supply, small-area irrigation, and drinking water applications.

Brand:
HUOPSOLAR
Model:
I3PC
Pump Type:
Solar submersible pump (impeller type)

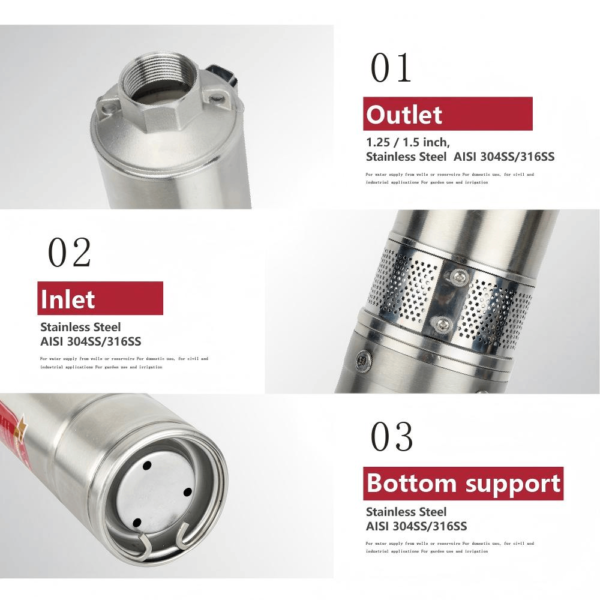

Outlet:
1.25/1.5 inches
Pump Diameter:
3 inches / 75 mm
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
1 year
Packaging Type:
Wooden crate
Category: Brand:

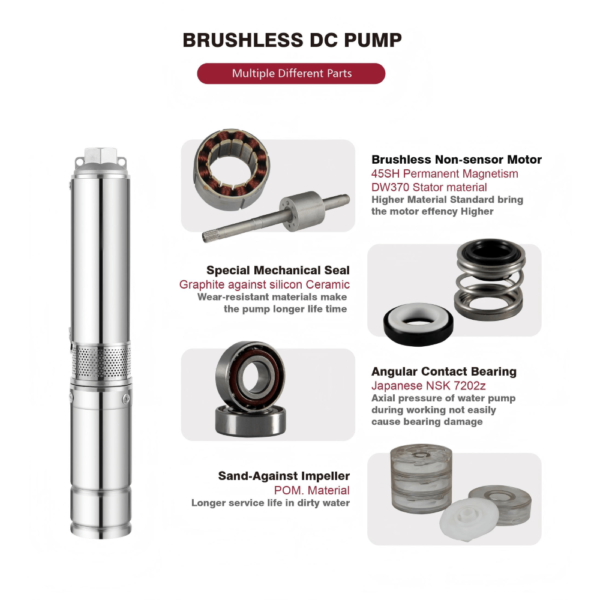

The I3PC is a built-in MPPT solar centrifugal pump designed for submersible water pumping from deep wells and boreholes, especially in locations without convenient access to grid power. Its centrifugal impeller design, brushless DC motor, and integrated MPPT controller support stable pumping from deep or low-yield water sources. This makes the I3PC suitable for projects that need to move groundwater to the point of use without relying on conventional electricity.

As a solar submersible water pump and solar borehole pump, the I3PC is suited to deep-well irrigation, village and town water supply, clean drinking water, garden watering, and drip irrigation. It can also be used as a solar agricultural water pump for farm irrigation and livestock watering. For rural communities, farms, gardens, and other remote sites, the I3PC provides a practical way to bring available water sources into irrigation and everyday water-supply use. The centrifugal design makes the I3PC suitable for a range of submersible borehole water pumping applications.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A I3PC3.0-25-24-200D 24V 20-55V 200W 80-500W 3.0m³/h 25m 1.25 " 2m SSCO ＜80V
B I3PC3.0-35-24-300D 24V 20-55V 300W 80-500W 3.0m³/h 35m 1.25 " 2m SSCO ＜80V
C I3PC3.5-47-48-400D 48V 30-110V 400W 200-900W 3.5m³/h 47m 1.25 " 2m SSCO ＜150V
D I3PC3.5-80-72-600D 72V 50-170V 600W 300-1200W 3.5m³/h 80m 1.25 " 2m SSCO ＜200V
E I3PC3.5-95-96-750D 96V 60-220V 750W 400-1600W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
F I3PC3.8-123-110-1100D 110V 60-220V 1100W 400-1600W 3.8m³/h 123m 1.25 " 2m SSCO ＜250V
G I3PC3.8-155-110-1300D 110V 60-220V 1300W 600-1800W 3.8m³/h 155m 1.25 " 2m SSCO ＜250V
H I3PC3.8-180-110-1500D 110V 60-220V 1500W 600-1800W 3.8m³/h 180m 1.25 " 2m SSCO ＜250V
I I3PC5.2-45-48-500D 48V 30-110V 500W 200-900W 5.2m³/h 45m 1.5 " 2m SSCO ＜150V
J I3PC5.2-50-72-600D 72V 50-170V 600W 300-1200W 5.2m³/h 50m 1.5 " 2m SSCO ＜200V
K I3PC5.2-75-96-750D 96V 60-220V 750W 400-1600W 5.2m³/h 75m 1.5 " 2m SSCO ＜250V
L I3PC6-84-110-1100D 110V 60-220V 1100W 400-1600W 6.0m³/h 84m 1.5 " 2m SSCO ＜250V
M I3PC6-125-110-1500D 110V 60-220V 1500W 600-1800W 6.0m³/h 125m 1.5 " 2m SSCO ＜250V
N I3PC7.5-43-96-750D 96V 60-220V 750W 400-1600W 7.5m³/h 43m 1.5 " 2m SSCO ＜250V
O I3PC7.5-62-110-1100D 110V 60-220V 1100W 400-1600W 7.5m³/h 62m 1.5 " 2m SSCO ＜250V
P I3PC7.5-78-110-1500D 110V 60-220V 1500W 600-1800W 7.5m³/h 78m 1.5 " 2m SSCO ＜250V

Head(m) 25 23 20 18 15 10 8 5
Flow(m3/h) 0.1 0.4 0.7 1.3 2.1 2.5 2.8 3.1
Head(m) 35 27.33 25.59 22.23 17.64 12.54 5.91 2.64
Flow(m3/h) 0.05 0.58 1.02 1.51 2.01 2.54 3 3.15
Head(m) 47 34.88 30.8 26.72 20.19 11.52 5.7 2.54
Flow(m3/h) 0.05 0.51 1.03 1.55 2.02 2.56 3 3.53
Head(m) 80 65.48 59.46 52.32 41.4 29.16 13.86 2.44
Flow(m3/h) 0.05 0.51 1.07 1.5 2.04 2.55 3.04 3.35
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 123 108.42 102.6 95.87 92.3 82.92 76.39 65.88 56.81 47.12 35.39 22.53 3.05
Flow(m3/h) 0.05 0.32 0.6 0.92 1.21 1.53 1.81 2.11 2.41 3.73 3.06 3.38 3.68
Head(m) 154 144.42 133.61 130.14 117.19 100.67 85.16 67.01 49.05 24.78 3.15
Flow(m3/h) 0.05 0.45 0.82 1.22 1.6 2.03 2.41 2.87 3.2 3.65 3.86
Head(m) 178 165.13 158.5 143.4 122.19 100.97 76.19 45.69 5.91
Flow(m3/h) 0.05 0.53 1.02 1.5 2.07 2.55 3.02 3.53 4.03
Head(m) 49.97 49.36 46.61 43.04 39.77 36.2 32.02 27.43 21.62 16.11 9.89 4.38
Flow(m3/h) 0.17 0.55 1.02 1.51 2 2.54 3.01 3.53 4.06 4.54 5.04 5.34
Head(m) 73 59.66 54.36 50.18 45.28 41.1 37.12 29.78 22.94 12.95 2.24
Flow(m3/h) 0.05 0.54 1.05 1.58 2.03 2.58 3.07 3.58 4 4.52 5.24
Head(m) 82.92 81.9 79.35 76.9 73.43 68.84 63.84 55.79 45.59 33.24 14.58 6.52
Flow(m3/h) 0.53 1 1.53 2.03 2.53 3.09 3.5 4.04 4.55 5.02 5.54 5.8
Head(m) 123.62 119.74 109.95 101.58 92.3 82 73.94 61.91 50.07 34.67 7.95
Flow(m3/h) 0.53 1.05 1.53 2.01 2.5 3.01 3.5 4 4.51 5 5.7
Head(m) 40 35 30 25 20 15 10 5
Flow(m3/h) 2.5 3.3 4.2 4.8 5.4 5.9 6.5 7.3
Head(m) 61.09 60.58 59.97 59.15 57.83 56.09 53.95 51.4 47.01 43.14 37.63 31.71 23.76 9.17
Flow(m3/h) 0.53 1.03 1.53 2.02 2.52 3.03 3.54 4 4.52 5.03 5.53 6.05 6.54 7.25
Head(m) 79.25 79.04 78.94 77.1 75.47 70.27 64.86 57.83 51.09 46.5 39.36 31.1 20.7 8.56
Flow(m3/h) 0.48 1.01 2.09 2.53 3.07 3.56 4.01 4.57 5.09 5.55 6 6.52 7.08 7.58

● 1 x 3-inch DC solar centrifugal pump with a 2-meter cable
● 1 x Pump outlet connector
● 1 x Cable connector kit
● 1 x Waterproof splicing kit
