I4PC(b) 4 Inch Built-in MPPT Solar Centrifugal Borehole Submersible Pump with Plastic Impeller

The I4PC(b) is a 4-inch solar centrifugal pump with a built-in MPPT controller and plastic impeller, designed for borehole water supply, drinking water, and small-area irrigation. It supports 1.25- and 2.0-inch outlet configurations.

Brand:
HUOPSOLAR
Model:
I4PC(b)
Pump Type:
Solar Submersible Pump (Impeller Type)

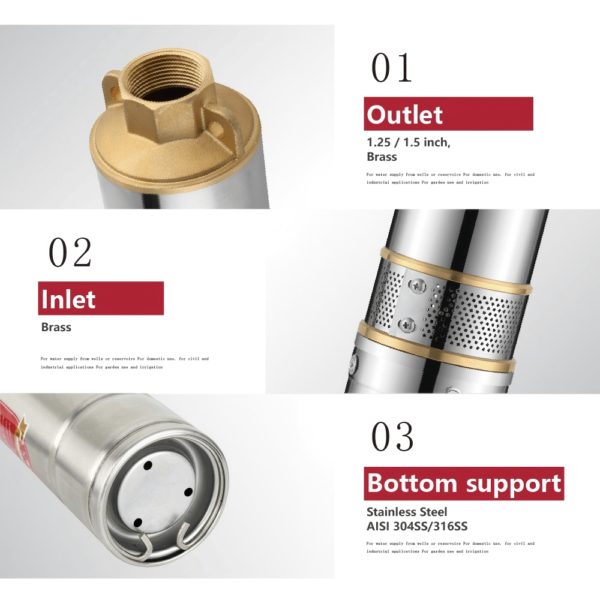

Outlet:
1.25/2.0 inches
Pump Diameter:
4 inches / 95 mm
Applications:
Domestic water supply, small-scale irrigation, drinking water
Certifications:
CE, ISO9001, GS, RoHS
Warranty:
2 years
Packaging Type:
Wooden crate
Category: Brand:

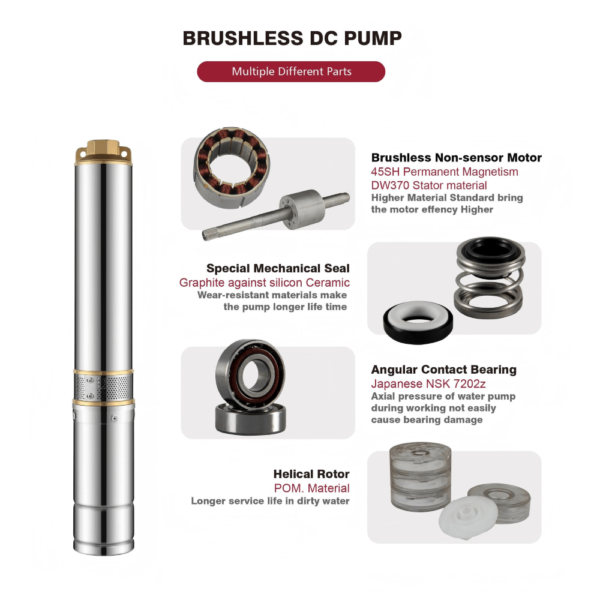

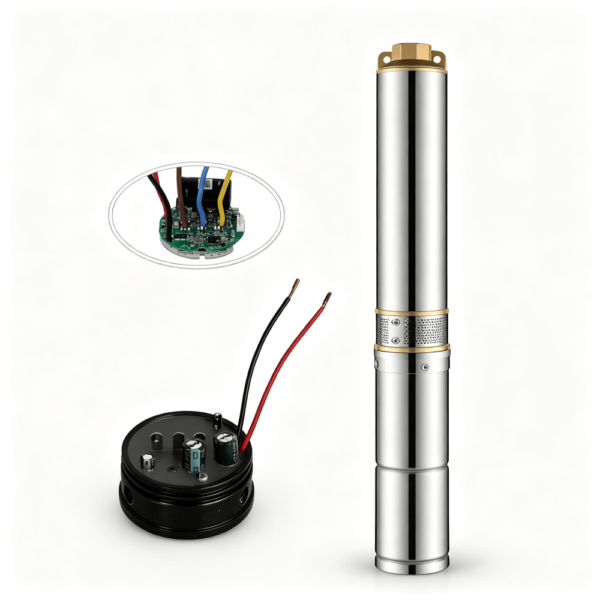

The I4PC(b) is a built-in MPPT solar centrifugal pump designed for submersible water pumping from boreholes and deep wells, especially in locations where grid electricity is unavailable or limited. Its centrifugal impeller design, brushless DC motor, and integrated MPPT controller make it suitable for solar-powered groundwater pumping. The pump is intended for moving water from below-ground sources to irrigation systems, storage tanks, gardens, and other water-use points in remote or off-grid locations.

As a solar borehole pump and solar submersible water pump, the I4PC(b) is suited to deep-well irrigation, village and town water supply, clean drinking water, garden watering, and drip irrigation. It can also be used as a solar agricultural water pump for farms, livestock watering, and other irrigation projects where reliable access to conventional power is limited. This makes the I4PC(b) suitable for agricultural sites, rural water systems, and remote installations that need to use available groundwater for daily water supply or irrigation.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A I4PC3.5-50-48-400B 48V 30-110V 400W 200-900W 3.5m³/h 50m 1.25 " 2m SSCO ＜150V
B I4PC3.5-65-72-600B 72V 50-170V 600W 300-1200W 3.5m³/h 65m 1.25 " 2m SSCO ＜200V
C I4PC3.5-95-96-750B 96V 60-220V 750W 400-1600W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
D I4PC3.5-95-120-900B 110V 60-220V 900W 400-1500W 3.5m³/h 95m 1.25 " 2m SSCO ＜250V
E I4PC3.5-110-110-1100B 110V 60-220V 1100W 400-1600W 3.5m³/h 110m 1.25 " 2m SSCO ＜250V
F I4PC4.0-35-48-400B 48V 30-110V 400W 200-900W 4.0m³/h 35m 1.25 " 2m SSCO ＜150V
G I4PC4.0-50-72-600B 72V 50-170V 400W 300-1200W 4.0m³/h 50m 1.25 " 2m SSCO ＜200V
H I4PC4.0-70-96-750B 96V 60-220V 600W 400-1600W 4.0m³/h 70m 1.25 " 2m SSCO ＜250V
I I4PC4.0-80-120-900B 110V 60-220V 750W 400-1500W 4.0m³/h 80m 1.25 " 2m SSCO ＜250V
J I4PC4.0-95-110-1100B 110V 60-220V 1100W 400-1600W 4.0m³/h 95m 1.25 " 2m SSCO ＜250V
K I4PC4.5-130-110-1500B 110V 60-220V 1500W 600-1800W 4.5m³/h 130m 1.25 " 2m SSCO ＜250V
L I4PC6-32-48-400B 48V 30-110V 400W 200-900W 6.0m³/h 32m 1.25 " 2m SSCO ＜150V
M I4PC6-42-72-600B 72V 50-170V 600W 300-1200W 6.0m³/h 42m 1.25 " 2m SSCO ＜200V
N I4PC6-56-96-750B 96V 60-220V 750W 400-1600W 6.0m³/h 56m 1.25 " 2m SSCO ＜250V
O I4PC6-84-110-1100B 110V 60-220V 1100W 400-1600W 6.0m³/h 84m 1.25 " 2m SSCO ＜250V
P I4PC6-112-110-1300B 110V 60-200V 1300W 600-1800W 6.0m³/h 112m 1.25 " 2m SSCO ＜250V
Q I4PC6-135-110-1500B 110V 60-220V 1500W 600-1800W 6.0m³/h 135m 1.25 " 2m SSCO ＜250V
R I4PC9-45-96-750B 96V 60-220V 750W 400-1600W 9.0m³/h 45m 2.0 " 2m SSCO ＜250V
S I4PC9-58-110-1100B 110V 60-220V 1100W 400-1600W 9.0m³/h 58m 2.0 " 2m SSCO ＜250V
T I4PC9-71-110-1300B 110V 60-220V 1300W 600-1800W 9.0m³/h 71m 2.0 " 2m SSCO ＜250V
U I4PC9-85-110-1500B 110V 60-220V 1500W 600-1800W 9.0m³/h 85m 2.0 " 2m SSCO ＜250V
V I4PC13-36-96-750B 96V 60-220V 750W 400-1600W 13m³/h 36m 2.0 " 2m SSCO ＜250V
W I4PC13-49-110-1100B 110V 60-220V 1100W 400-1600W 13m³/h 49m 2.0 " 2m SSCO ＜250V
X I4PC13-54-110-1300B 110V 60-220V 1300W 600-1800W 13m³/h 54m 2.0 " 2m SSCO ＜250V
Y I4PC13-60-110-1500B 110V 60-220V 1500W 600-1800W 13m³/h 60m 2.0 " 2m SSCO ＜250V
Z I4PC17-48-110-1500B 110V 60-220V 1500W 600-1800W 17m³/h 48m 2.0 " 2m SSCO ＜250V

Head(m) 55 50 45 40 35 30 20 10
Flow(m3/h) 10 45 88 110 127 135 169 200
Head(m) 60 55 50 45 40 30 20 10
Flow(m3/h) 10 45 88 110 127 135 169 200
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 32 28 24 20 16 12 8 5
Flow(m3/h) 0.2 0.8 1.7 2.9 3.7 4.2 4.9 5.5
Head(m) 43 40 37 35 32 27 25 20 17 12 7 3
Flow(m3/h) 0 1.07 1.57 2.02 2.54 3.11 3.61 4.09 4.52 5.04 5.56 5.91
Head(m) 57 55 48 46 41 38 33 28 23 17 10 3
Flow(m3/h) 0 0.54 1.51 2 2.54 2.95 3.47 4.08 4.52 5.03 5.61 6.05
Head(m) 82.92 81.9 79.35 76.9 73.43 68.84 63.84 55.79 45.59 33.24 14.58 6.52
Flow(m3/h) 0.53 1 1.53 2.03 2.53 3.09 3.5 4.04 4.55 5.02 5.54 5.8
Head(m) 109 103 97 90 85 78 69 60 52 40 31 19 7 4
Flow(m3/h) 0 0.55 0.98 1.45 1.95 2.46 2.97 3.52 3.94 4.57 5.04 5.57 6.03 6.14
Head(m) 133.1 122.09 119.74 111.17 94.75 79.86 67.41 57.72 48.44 36.2 22.43 6.42
Flow(m3/h) 0 0.63 1.02 1.54 2.05 2.51 3.04 3.5 4.03 4.53 5 5.39
Head(m) 50.99 50.07 48.03 42.73 33.96 26.82 18.86 10.91 2.03
Flow(m3/h) 1.08 2.04 3.05 4.05 5.08 6 7.05 8.07 9.04
Head(m) 56 54 52 51 50 47 44 39 31 20 9 0.7
Flow(m3/h) 0 1.04 2.1 2.49 3.05 3.6 4 5.11 5.96 6.99 7.93 9.07
Head(m) 70 68 67 66 65 63 62 59 56 49 39 26 17 0.7
Flow(m3/h) 0 0.45 1.07 1.59 2.12 2.56 2.98 3.45 4.15 5.1 6.13 7.01 8.12 9.12
Head(m) 83 79 75 70 63 55 43 30 17 3
Flow(m3/h) 0.1 1 2 3 4 5 6 7 8 8.9
Head(m) 35 32 28 25 21 13 5 1
Flow(m3/h) 0.2 2 4 6 8 10 12 12.8
Head(m) 48.85 46.71 44.16 42.32 38.04 33.96 30.9 27.23 23.55 20.09 15.29 10.4 3.36 1.62
Flow(m3/h) 0 1.02 2.01 3.07 4.03 5.04 6.04 7.07 8.02 9 10.09 11.03 12.07 12.83
Head(m) 53 49 44 38 31 20 8 2
Flow(m3/h) 0.1 2 4 6 8 10 12 12.9
Head(m) 56.09 51.81 50.07 48.34 41.4 36 27.23 21.11 10.19 2.44
Flow(m3/h) 1.51 3.11 4.09 4.53 6.1 7.45 9.07 10.51 12.04 13.02
Head(m) 47 45 42 39 34 28 21 13 5 1
Flow(m3/h) 0.3 2 4 6 8 10 12 14 16 17

● 1 x 4-inch DC solar centrifugal pump with a 2-meter cable
● 1 x Pump outlet connector
● 1 x Cable connector kit
● 1 x Waterproof splicing kit
