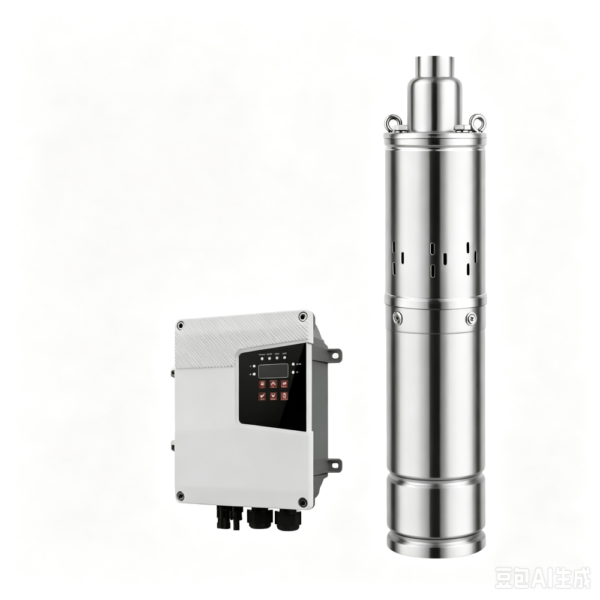

S4SS 4 Inch Solar Powered Water Pump DC Screw Type Submersible Bore Pump with MPPT Controller

Brand:                                   HUOPSOLAR
Model:                                  S4SS
Pump Type:                          Solar Submersible Screw Pump
Outlet:                                  1.0 inch
Pump Diameter:                   4 inches / 95 mm
Applications:                        Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                             2 years
Packaging Type:                   Wooden crate

Category: Brand:

This 4 Inch Solar Powered DC Screw Type Submersible Bore Pump is designed for reliable water pumping in off-grid areas. Powered directly by solar panels, it provides an eco-friendly and cost-effective solution without grid electricity or fuel.

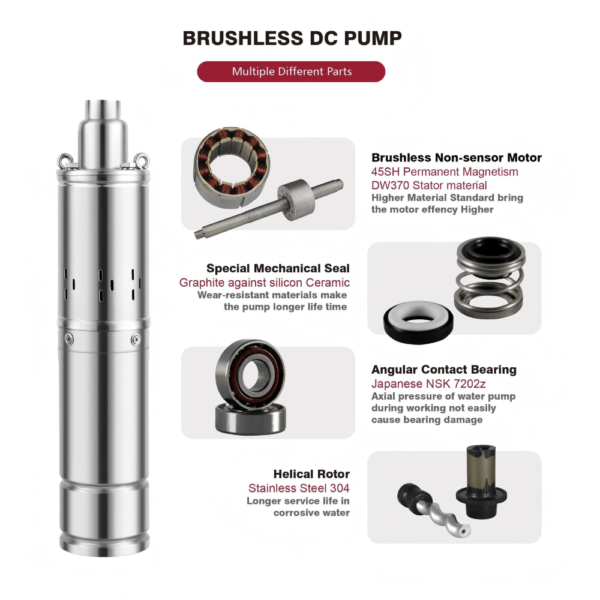

Featuring an MPPT controller and brushless DC motor, this solar DC submersible water pump delivers high energy efficiency and stable performance. Its screw-type design ensures consistent water flow in deep wells and low-yield water sources with minimal maintenance.

Ideal for agricultural irrigation, livestock watering, garden irrigation, and rural water supply, this brushless DC solar water pump offers a durable and sustainable solution for farms, gardens, and remote communities.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel(VOC)
A S4SS1.7-70-48-500D 48V 30-110V 500W 200-900W 1.7m³/h 70m 1.0 " 2m SSCO ＜150V
B S4SS2.0-95-96-750D 96V 60-220V 750W 400-1600W 2.0m³/h 95m 1.0 " 2m SSCO ＜250V
C S4SS2.0-110-110-1100D 110V 60-220V 1100W 400-1600W 2.0m³/h 110m 1.0 " 2m SSCO ＜250V
D S4SS2.2-150-110-1300D 110V 60-220V 1300W 600-1800W 2.2m³/h 150m 1.0 " 2m SSCO ＜250V
E S4SS2.0-110-150-1100D 150V 80-260V 1100W 400-1600W 2.0m³/h 110m 1.0 " 2m SSCO ＜450V
F S4SS2.2-150-180-1300D 200V 120-300V 1300W 600-1800W 2.2m³/h 150m 1.0 " 2m SSCO ＜450V

S4SS1.7-70-48-500D

Head(m) 70 60 50 40 30 20 10 5
Flow(m3/h) 0.1 0.3 0.5 0.8 1.1 1.3 1.5 1.6

S4SS2.0-95-96-750D

Head(m) 90 80 70 60 40 20 10 5
Flow(m3/h) 0.2 0.4 0.6 0.8 1.2 1.4 1.6 1.9

S4SS2.0-110-110-1100D

Head(m) 90 80 70 60 40 20 10 5
Flow(m3/h) 0.2 0.4 0.6 0.8 1.2 1.4 1.6 1.9

S4SS2.2-150-110-1300D

Head(m) 150 142 133 124 113 100 87 62 45 25 0
Flow(m3/h) 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

S4SS2.0-110-150-1100D

Head(m) 90 80 70 60 40 20 10 5
Flow(m3/h) 0.2 0.4 0.6 0.8 1.2 1.4 1.6 1.9

S4SS2.2-150-180-1300D

Head(m) 150 142 133 124 113 100 87 62 45 25 0
Flow(m3/h) 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

● 1 x 4-inch DC solar screw pump with a 2-meter cable
● 1 x Pump controller with MPPT function
● 1 x Stainless steel float switch (tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
