Z3PC-A/D 3 Inch AC/DC Solar Submersible Borehole Pump with MPPT Controller | Hybrid Deep Well Water Pump

Brand:                                   HUOPSOLAR
Model:                                Z3PC-ADHY
Pump Type:                        Impeller-type Solar Submersible Pump

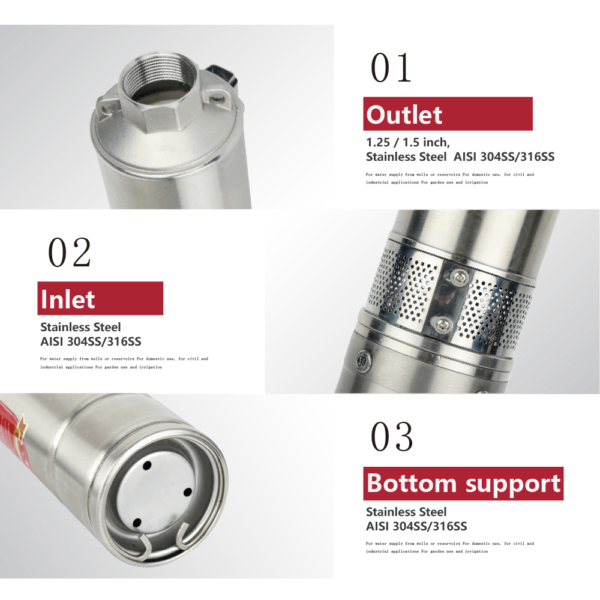

Outlet:                                1.25/1.5 inches
Pump Diameter:                3 inches / 75 mm
Applications:                      Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                              2 years
Packaging Type:                  Wooden crate

Category: Brand:

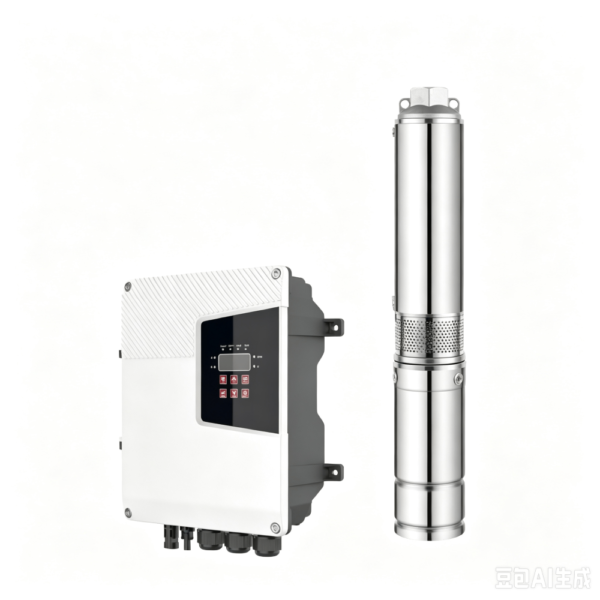

The 3-Inch AC/DC Hybrid Solar Submersible Borehole Pump is a reliable and energy-efficient water pumping solution for off-grid applications. Powered directly by solar panels, it eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective choice.

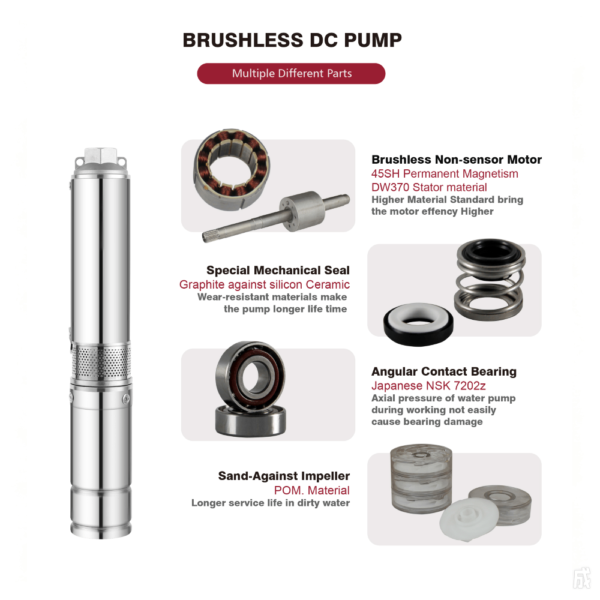

Equipped with an MPPT controller and a brushless DC motor, this solar water pump delivers efficient and stable performance even in deep wells and low-flow water sources. Its durable design requires minimal maintenance, making it ideal for agricultural irrigation, livestock watering, gardens, and rural water supply projects.

No. Item Rated AC Voltage Rated DC Voltage Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panelOpen circuit voltage (VOC)
A Z3PC3.5-95-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 3.5m³/h 95m 1.25 " 2m ADHY ＜450V
B Z3PC3.8-123-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 3.8m³/h 123m 1.25 " 2m ADHY ＜450V
C Z3PC3.8-155-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 3.8m³/h 155m 1.25 " 2m ADHY ＜450V
D Z3PC3.8-180-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 3.8m³/h 180m 1.25 " 2m ADHY ＜450V
E Z3PC5.2-75-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 5.2m³/h 75m 1.5 " 2m ADHY ＜450V
F Z3PC6-84-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 6m³/h 84m 1.5 " 2m ADHY ＜450V
G Z3PC6-125-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 6m³/h 125m 1.5 " 2m ADHY ＜450V
H Z3PC7.5-43-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 7.5m³/h 43m 1.5 " 2m ADHY ＜450V
I Z3PC7.5-62-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 7.5m³/h 62m 1.5 " 2m ADHY ＜450V
J Z3PC7.5-78-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 7.5m³/h 78m 1.5 " 2m ADHY ＜450V

Z3PC3.5-95-96-750D-A/DHY

Z3PC3.5-95-96-750D-A/DHY

Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51

Z3PC3.8-123-150-1100D-A/DHY

Head(m) 123 108.42 102.6 95.87 92.3 82.92 76.39 65.88 56.81 47.12 35.39 22.53 3.05
Flow(m3/h) 0.05 0.32 0.6 0.92 1.21 1.53 1.81 2.11 2.41 3.73 3.06 3.38 3.68

Z3PC3.8-155-180-1300D-A/DHY

Head(m) 154 144.42 133.61 130.14 117.19 100.67 85.16 67.01 49.05 24.78 3.15
Flow(m3/h) 0.05 0.45 0.82 1.22 1.6 2.03 2.41 2.87 3.2 3.65 3.86

Z3PC3.8-180-200-1500D-A/DHY

Head(m) 178 165.13 158.5 143.4 122.19 100.97 76.19 45.69 5.91
Flow(m3/h) 0.05 0.53 1.02 1.5 2.07 2.55 3.02 3.53 4.03

Z3PC5.2-75-96-750D-A/DHY

Head(m) 73 59.66 54.36 50.18 45.28 41.1 37.12 29.78 22.94 12.95 2.24
Flow(m3/h) 0.05 0.54 1.05 1.58 2.03 2.58 3.07 3.58 4 4.52 5.24

Z3PC6-84-150-1100D-A/DHY

Head(m) 80 70 60 50 40 30 20 10
Flow(m3/h) 1 2.8 3.7 4.2 4.8 5.2 5.3 5.7

Z3PC6-125-200-1500D-A/DHY

Head(m) 120 110 90 70 50 30 20 10
Flow(m3/h) 1 1.5 2.6 3.9 4.5 5.2 5.6 6

Z3PC7.5-43-96-750D-A/DHY

Head(m) 70 60 50 40 30 20 10 5
Flow(m3/h) 3.5 4.2 5.1 6 6.7 7.1 7.2 7.5

Z3PC7.5-62-150-1100D-A/DHY

Head(m) 70 60 50 40 30 20 10 5
Flow(m3/h) 3.5 4.2 5.1 6 6.7 7.1 7.2 7.5

Z3PC7.5-78-200-1500D-A/DHY

Head(m) 70 60 50 40 30 20 10 5
Flow(m3/h) 3.5 4.2 5.1 6 6.7 7.1 7.2 7.5

● 1 x 3-inch brushless solar centrifugal pump with a 2-meter cable
● 1 x AC/DC hybrid pump controller with MPPT function
● 1 x Plastic float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
