Z3PCB-A/D 3-Inch AC/DC Hybrid Solar Borehole Pump with MPPT Controller

The HUOPSOLAR Z3PCB-A/D is a 3-inch solar powered submersible water pump with an impeller design, 1.25- or 1.5-inch outlet options, and applications including domestic water supply, drinking water, and small-area irrigation.

Brand:                                  HUOPSOLAR
Model:                                 Z3PCb-ADHY
Pump Type:                          Impeller-type Solar Submersible Pump

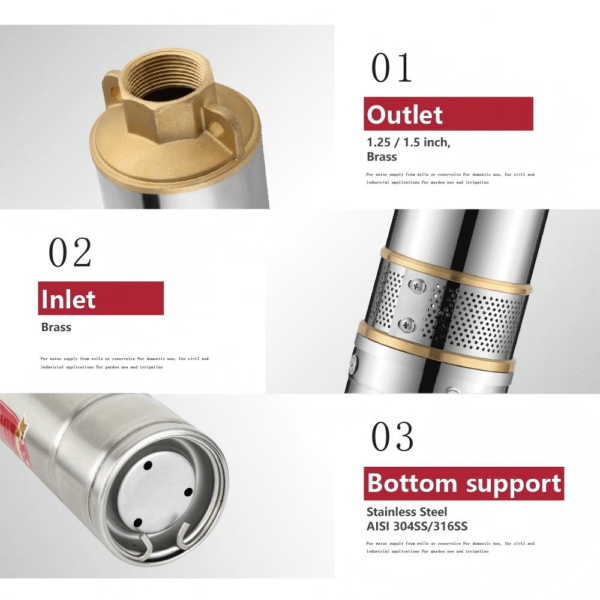

Outlet:                                 1.25/1.5 inches
Pump Diameter:                   3 inches / 75 mm
Applications:                        Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                             2 years
Packaging Type:                   Wooden crate

Category: Brand:

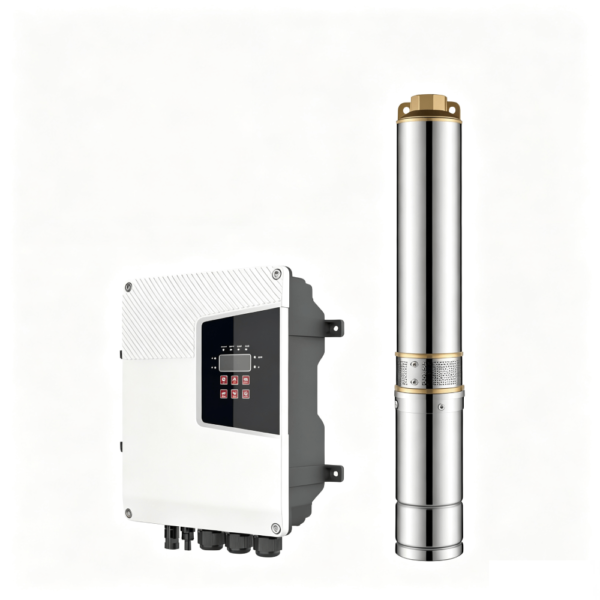

The Z3PCB-A/D is a compact AC/DC hybrid pump developed for borehole water applications. With a 3-inch (75 mm) pump diameter, centrifugal impeller design, and AC/DC MPPT controller, it provides a practical configuration for domestic water supply, drinking water, and small-area irrigation. The two available outlet sizes, 1.25 inch and 1.5 inch, allow the pump to be specified according to the required water system setup.
As a solar centrifugal water pump from HUOPSOLAR, the Z3PCB-A/D uses a plastic impeller and is supplied with CE, ISO9001, GS, and RoHS certifications. The model comes with a 2-year warranty and is packed in a wooden case. Its combination of AC/DC hybrid operation, submersible construction, and MPPT control makes it suitable for borehole projects that require a compact solar powered pumping solution.

No. Item Rated AC Voltage Rated DC Voltage Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A Z3PC3.5-95-96-750B-A/DHY 80-285V 80-430V 750W 400-1200W 3.5m³/h 95m 1.25 " 2m ADHY ＜450V
B Z3PC3.8-123-150-1100B-A/DHY 80-285V 80-430V 1100W 600-1500W 3.8m³/h 123m 1.25 " 2m ADHY ＜450V
C Z3PC3.8-155-180-1300B-A/DHY 80-285V 80-430V 1300W 600-1600W 3.8m³/h 155m 1.25 " 2m ADHY ＜450V
D Z3PC3.8-180-200-1500B-A/DHY 80-285V 80-430V 1500W 600-1800W 3.8m³/h 180m 1.25 " 2m ADHY ＜450V
E Z3PC5.2-75-96-750B-A/DHY 80-285V 80-430V 750W 400-1200W 5.2m³/h 75m 1.5 " 2m ADHY ＜450V
F Z3PC6-84-150-1100B-A/DHY 80-285V 80-430V 1100W 600-1500W 6m³/h 84m 1.5 " 2m ADHY ＜450V
G Z3PC6-125-200-1500B-A/DHY 80-285V 80-430V 1500W 600-1800W 6m³/h 125m 1.5 " 2m ADHY ＜450V
H Z3PC7.5-43-96-750B-A/DHY 80-285V 80-430V 750W 400-1200W 7.5m³/h 43m 1.5 " 2m ADHY ＜450V
I Z3PC7.5-62-150-1100B-A/DHY 80-285V 80-430V 1100W 600-1500W 7.5m³/h 62m 1.5 " 2m ADHY ＜450V
J Z3PC7.5-78-200-1500B-A/DHY 80-285V 80-430V 1500W 600-1800W 7.5m³/h 78m 1.5 " 2m ADHY ＜450V

Head(m) 80 70 60 50 40 30 20 10
Flow(m3/h) 1 2.8 3.7 4.2 4.8 5.2 5.3 5.7
Head(m) 95 75.68 70.98 61.09 48.44 36.51 18.45 2.64
Flow(m3/h) 0.05 0.51 1.05 1.52 2.06 2.55 3.04 3.51
Head(m) 123 108.42 102.6 95.87 92.3 82.92 76.39 65.88 56.81 47.12 35.39 22.53 3.05
Flow(m3/h) 0.05 0.32 0.6 0.92 1.21 1.53 1.81 2.11 2.41 3.73 3.06 3.38 3.68
Head(m) 154 144.42 133.61 130.14 117.19 100.67 85.16 67.01 49.05 24.78 3.15
Flow(m3/h) 0.05 0.45 0.82 1.22 1.6 2.03 2.41 2.87 3.2 3.65 3.86
Head(m) 178 165.13 158.5 143.4 122.19 100.97 76.19 45.69 5.91
Flow(m3/h) 0.05 0.53 1.02 1.5 2.07 2.55 3.02 3.53 4.03
Head(m) 73 59.66 54.36 50.18 45.28 41.1 37.12 29.78 22.94 12.95 2.24
Flow(m3/h) 0.05 0.54 1.05 1.58 2.03 2.58 3.07 3.58 4 4.52 5.24
Head(m) 80 70 60 50 40 30 20 10
Flow(m3/h) 1 2.8 3.7 4.2 4.8 5.2 5.3 5.7
Head(m) 120 110 90 70 50 30 20 10
Flow(m3/h) 1 1.5 2.6 3.9 4.5 5.2 5.6 6
Head(m) 70 60 50 40 30 20 10 5
Flow(m3/h) 3.5 4.2 5.1 6 6.7 7.1 7.2 7.5
Head(m) 70 60 50 40 30 20 10 5
Flow(m3/h) 3.5 4.2 5.1 6 6.7 7.1 7.2 7.5
Head(m) 70 60 50 40 30 20 10 5
Flow(m3/h) 3.5 4.2 5.1 6 6.7 7.1 7.2 7.5

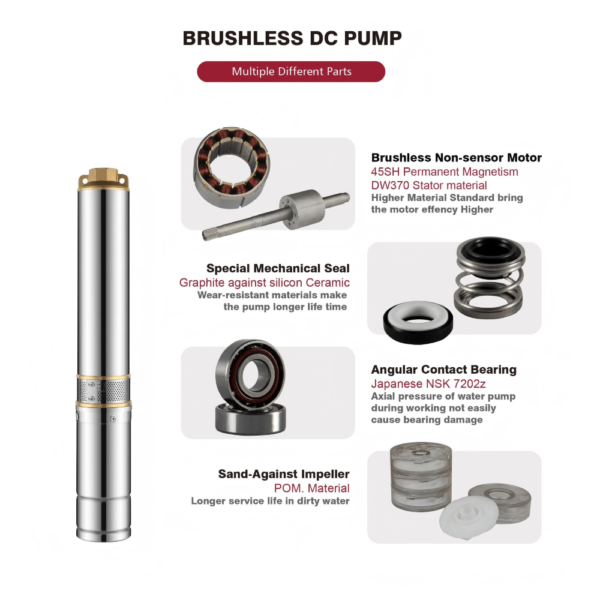

● 1 x 3-inch brushless solar centrifugal pump with a 2-meter cable
● 1 x AC/DC hybrid pump controller with MPPT function
● 1 x Plastic float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
