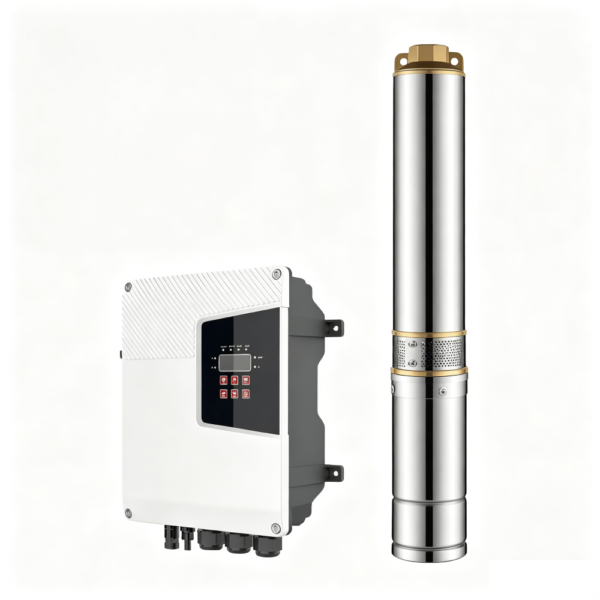

Z3SC-A/D 3-Inch Solar Borehole Pump with Stainless Steel Impeller and MPPT Controller

The ZRI Z3SC-ADHY is a 3-inch solar submersible water pump with a stainless steel impeller, MPPT controller, and 1.25- or 1.5-inch outlet options for domestic water supply, drinking water, and small-area irrigation.

Brand:                                  HUOPSOLAR
Model:                                 Z3SC-ADHY
Pump Type:                         Impeller-type solar submersible pump

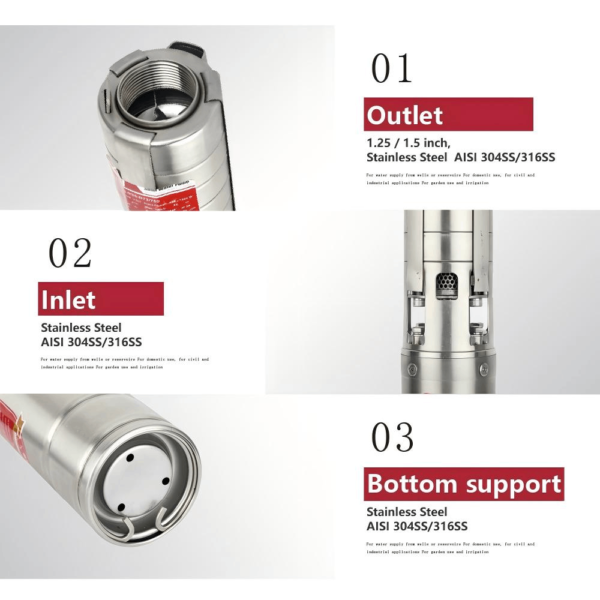

Outlet:                                 1.25/1.5 inches
Pump Diameter:                  3 inches / 75 mm
Applications:                        Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                             2 years
Packaging Type:                   Wooden crate

Category: Brand:

The Z3SC-ADHY is designed for borehole water applications with a 3-inch (75 mm) pump diameter and an impeller-type submersible configuration. Its stainless steel impeller and MPPT controller form the core of the pumping setup, while the 1.25-inch and 1.5-inch outlet options provide two connection choices for water delivery systems. The model is intended for domestic water supply, drinking water, and small-area irrigation.
As a solar centrifugal water pump, the Z3SC-ADHY uses a DC configuration and is built for submersible installation. The ZRI model comes with CE, ISO9001, GS, and RoHS certifications, a 2-year warranty, and wooden-case packaging. For projects looking for a compact dc submersible pump for borehole use, this 3-inch model combines a stainless steel impeller with MPPT control in a solar-powered pumping configuration.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A Z3SC4.8-95-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 4.8m³/h 95m 1.25 " 2m ADHY ＜450V
B Z3SC4.8-112-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1600W 4.8m³/h 110m 1.25 " 2m ADHY ＜450V
C Z3SC4.8-135-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 4.8m³/h 130m 1.25 " 2m ADHY ＜450V

Head(m) 96.48 88.94 87.2 79.96 67.01 52.01 42.53 37.63 28.25 18.66 5.3
Flow(m3/h) 0 0.58 1.06 1.56 2.02 2.54 3.11 3.51 4.04 4.51 4.95
Head(m) 110.46 99.24 95.57 82.41 68.54 56.09 47.32 40.38 30.9 21 5.5
Flow(m3/h) 0 0.6 1.02 1.51 2.05 2.55 3.08 3.55 4.02 4.51 5.01
Head(m) 133.1 122.09 119.74 111.17 94.75 79.86 67.41 57.72 48.44 36.2 22.43 6.42
Flow(m3/h) 0 0.63 1.02 1.54 2.05 2.51 3.04 3.5 4.03 4.53 5 5.39

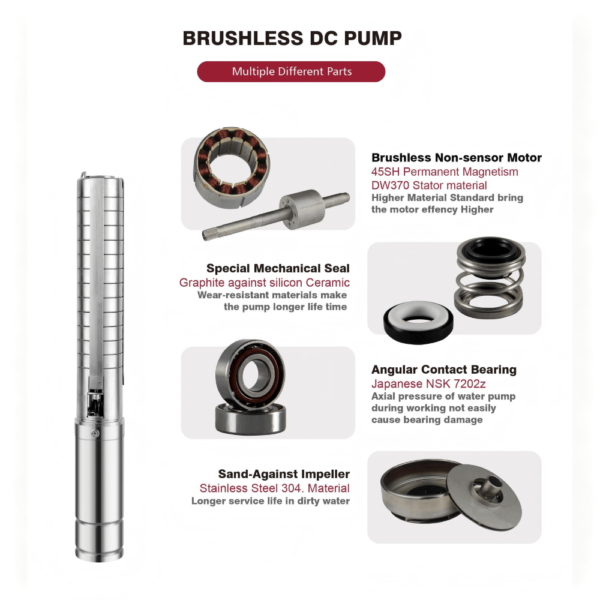

● 1 x 3-inch brushless solar centrifugal pump with a 2-meter cable
● 1 x AC/DC hybrid pump controller with MPPT function
● 1 x Plastic float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
