Z4/6SC-ADHY 6 inch Solar Borehole Pump, AC/DC Hybrid Centrifugal Submersible Water Pump with Stainless Steel Impeller and MPPT Controller

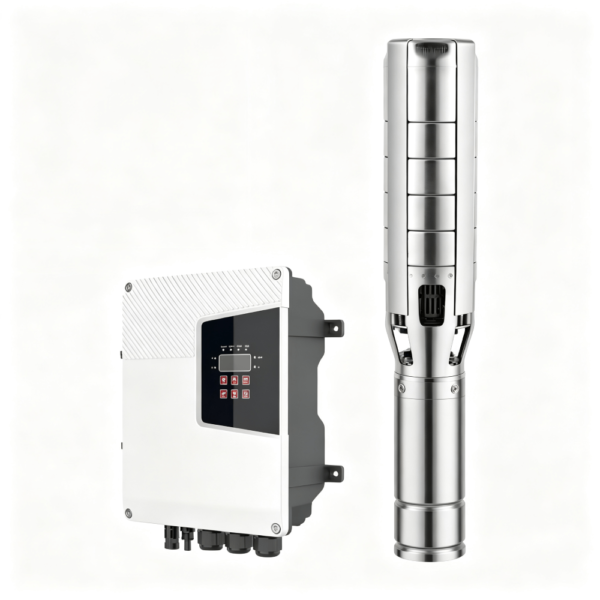

The HUOPSOLAR Z4/6SC-ADHY is a 6-inch solar submersible water pump with a stainless steel impeller, AC/DC hybrid power, and an MPPT controller — a dependable solar water pump for irrigation and household supply.

Brand:                                  HUOPSOLAR
Model:                                 Z4/6SC-ADHY
Pump Type:                         Impeller-type Solar Submersible Pump

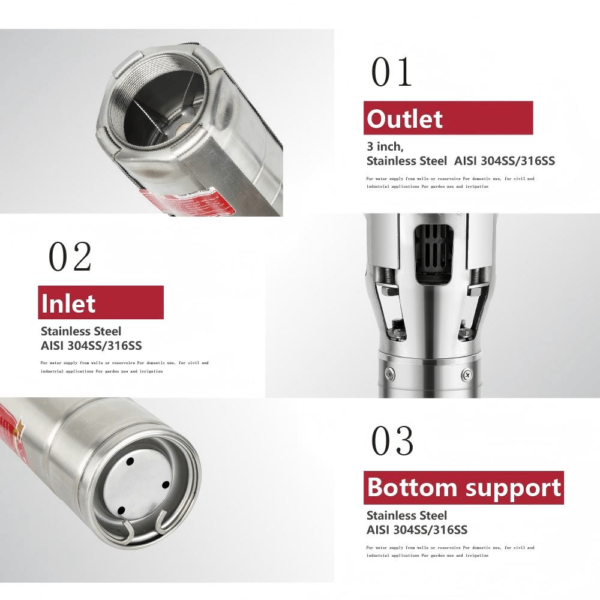

Outlet:                                 3.0 inches
Pump Diameter:                  6 inches / 135 mm
Applications:                       Domestic water supply, small-scale irrigation, drinking water
Certifications:                      CE, ISO9001, GS, RoHS
Warranty:                            2 years
Packaging Type:                  Wooden crate

Category: Brand:

Engineered as a 6-inch solar well pump, the HUOPSOLAR Z4/6SC-ADHY is a centrifugal submersible design that draws power straight from solar panels — delivering reliable water in off-grid locations without grid electricity or fuel. Its AC/DC hybrid system and MPPT controller keep operation stable and efficient, an economical and environmentally friendly choice for farms, gardens, and remote communities.

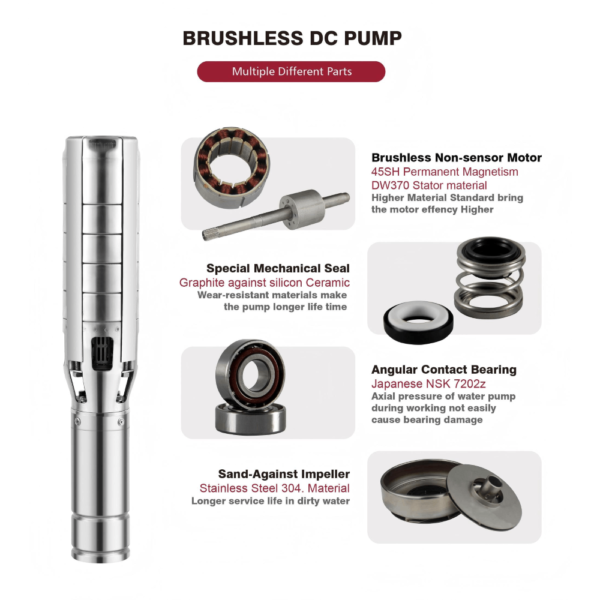

A brushless DC motor and stainless steel impeller sustain steady flow even in deep wells and low-yield sources, reducing wear and maintenance. As a solar centrifugal pump for irrigation, it powers a solar powered irrigation system, works as a solar agricultural water pump for small-scale farming, and covers livestock watering and household use — certified CE, ISO9001, GS and RoHS, with a 2-year warranty.

New wpDataTable

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A Z4/6SC36-22-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 36m³/h 22m 3.0 " 2m ADHY ＜450V
B Z4/6SC36-38-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 36m³/h 38m 3.0 " 2m ADHY ＜450V
C Z4/6SC36-45-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 36m³/h 45m 3.0 " 2m ADHY ＜450V

Head(m) 21 20.7 20.49 19.68 17.64 16.01 14.48 12.95 11.52 10.19 8.66 6.93 5.4 2.03
Flow(m3/h) 0.05 2.51 5.08 7.56 10.05 12.5 15.04 17.51 20.06 22.57 25 27.53 30.08 35.48
Head(m) 38.65 32.53 28.14 23.76 20.09 16.62 11.82 7.34 6.72
Flow(m3/h) 4.05 8.03 12.05 16.01 20.04 24.09 28 32.58 35.36
Head(m) 40 35 30 25 20 15 10 5
Flow(m3/h) 6.7 11 14.6 20.5 25.6 28.9 32 34.9

● 1 x 6-inch brushless solar centrifugal pump with 2m cable
● 1 x AC/DC hybrid pump controller with MPPT function
● 1 x Plastic float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit"
