Z4SC-ADHY 4 inch Solar Submersible Water Pump, Centrifugal Borehole Pump with Stainless Steel Impeller and MPPT Controller

The HUOPSOLAR Z4SC-ADHY is a 4-inch solar deep well pump with a stainless steel impeller, AC/DC hybrid power, and an MPPT controller — a dependable solar water pump for irrigation and household supply.

Brand:                                  HUOPSOLAR
Model:                                  Z4SC-ADHY
Pump Type:                          Impeller-type Solar Submersible Pump

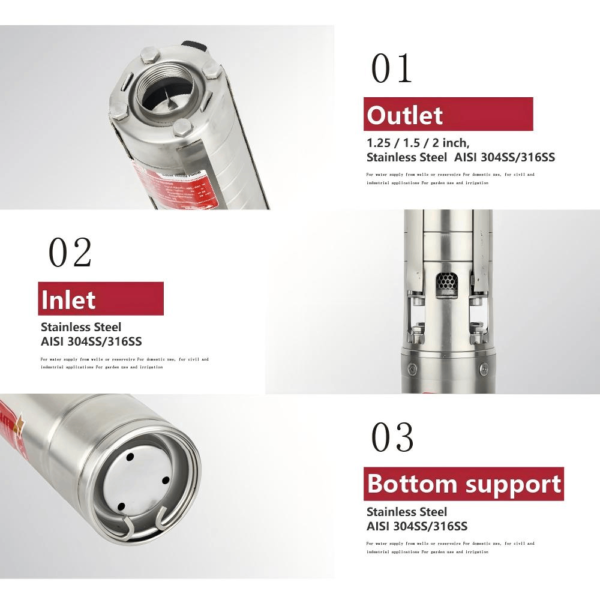

Outlet:                                  1.25/1.5/2.0 inches
Pump Diameter:                   4 inches / 95 mm
Applications:                        Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                             2 years

Category: Brand:

Built as a 4-inch solar centrifugal pump, the HUOPSOLAR Z4SC-ADHY runs directly from solar panels, keeping water flowing in off-grid locations without grid electricity or fuel. The AC/DC hybrid system and MPPT controller deliver stable, efficient performance — an economical and environmentally friendly choice for farms, gardens, and remote communities.

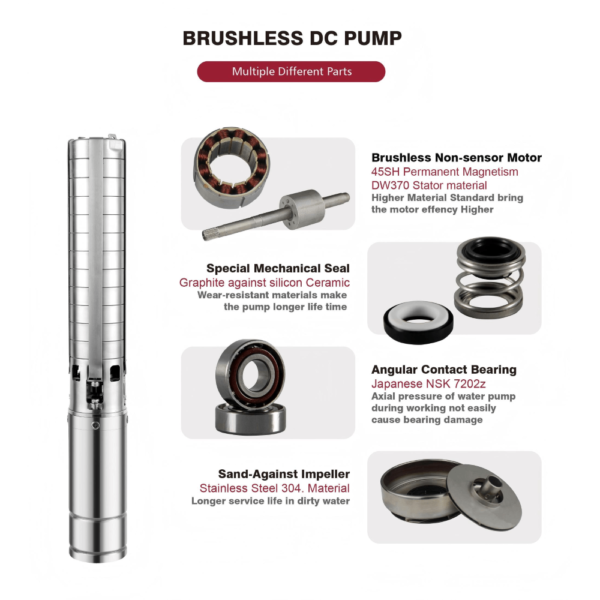

Its brushless DC motor and stainless steel impeller sustain steady flow in deep wells and low-yield sources with less wear and maintenance. As a solar borehole pump, it powers a solar powered irrigation system, works as a solar agricultural water pump for small-scale farming, and covers livestock watering and household use — certified CE, ISO9001, GS and RoHS, with a 2-year warranty.

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A Z4SC5.2-67-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 5.2m³/h 67m 1.25 " 2m ADHY ＜450V
B Z4SC5.2-101-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 5.2m³/h 101m 1.25 " 2m ADHY ＜450V
C Z4SC5.2-146-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 5.2m³/h 146m 1.25 " 2m ADHY ＜450V
D Z4SC5.2-198-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 5.2m³/h 203m 1.25 " 2m ADHY ＜450V
E Z4SC5.2-255-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 5.2m³/h 255m 1.25 " 2m ADHY ＜450V
F Z4SC5.2-275-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 5.2m³/h 255m 1.25 " 2m ADHY ＜450V
G Z4SC7.5-68-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 7.5m³/h 80m 1.25 " 2m ADHY ＜450V
H Z4SC7.5-80-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 7.5m³/h 80m 1.25 " 2m ADHY ＜450V
I Z4SC7.5-100-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 7.5m³/h 100m 1.25 " 2m ADHY ＜450V
J Z4SC7.5-150-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 7.5m³/h 150m 1.25 " 2m ADHY ＜450V
K Z4SC7.5-205-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 7.5m³/h 150m 1.25 " 2m ADHY ＜450V
L Z4SC11-60-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 11m³/h 60m 2.0 " 2m ADHY ＜450V
M Z4SC11-120-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 11m³/h 120m 2.0 " 2m ADHY ＜450V
N Z4SC11-136-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 11m³/h 136m 2.0 " 2m ADHY ＜450V
O Z4SC19-35-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 19m³/h 35m 2.0 " 2m ADHY ＜450V
P Z4SC19-60-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 19m³/h 60m 2.0 " 2m ADHY ＜450V
Q Z4SC19-68-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 19m³/h 68m 2.0 " 2m ADHY ＜450V

No. Item Rated Voltage Optimum input  voltage(DC) Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A Z4SC5.2-67-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 5.2m³/h 67m 1.25 " 2m ADHY ＜450V
B Z4SC5.2-101-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 5.2m³/h 101m 1.25 " 2m ADHY ＜450V
C Z4SC5.2-146-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 5.2m³/h 146m 1.25 " 2m ADHY ＜450V
D Z4SC5.2-198-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 5.2m³/h 203m 1.25 " 2m ADHY ＜450V
E Z4SC5.2-255-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 5.2m³/h 255m 1.25 " 2m ADHY ＜450V
F Z4SC5.2-275-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 5.2m³/h 255m 1.25 " 2m ADHY ＜450V
G Z4SC7.5-68-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 7.5m³/h 80m 1.25 " 2m ADHY ＜450V
H Z4SC7.5-80-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 7.5m³/h 80m 1.25 " 2m ADHY ＜450V
I Z4SC7.5-100-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 7.5m³/h 100m 1.25 " 2m ADHY ＜450V
J Z4SC7.5-150-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 7.5m³/h 150m 1.25 " 2m ADHY ＜450V
K Z4SC7.5-205-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 7.5m³/h 150m 1.25 " 2m ADHY ＜450V
L Z4SC11-60-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 11m³/h 60m 2.0 " 2m ADHY ＜450V
M Z4SC11-120-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 11m³/h 120m 2.0 " 2m ADHY ＜450V
N Z4SC11-136-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 11m³/h 136m 2.0 " 2m ADHY ＜450V
O Z4SC19-35-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 19m³/h 35m 2.0 " 2m ADHY ＜450V
P Z4SC19-60-300-2200D-A/DHY 80-285V 80-430V 2200W 900-2500W 19m³/h 60m 2.0 " 2m ADHY ＜450V
Q Z4SC19-68-300-2500D-A/DHY 80-285V 80-430V 2500W 900-2800W 19m³/h 68m 2.0 " 2m ADHY ＜450V
Head(m) 94.24 91.38 80.67 69.35 60.27 52.11 44.87 38.75 30.8 20.09 11.52 6.32
Flow(m3/h) 0.5 0.99 1.51 2.02 2.51 3.01 3.55 4.02 4.51 5.1 5.58 5.69
Head(m) 133.82 130.35 121.07 103.83 88.53 77.51 65.48 57.01 43.55 32.12 6.21
Flow(m3/h) 0.67 1.07 1.49 2 2.54 2.95 3.51 4.04 4.58 5.06 5.92
Head(m) 190 160 130 90 60 40 20 10
Flow(m3/h) 0.3 0.8 1.3 2.2 3.1 3.7 4.3 4.6
Head(m) 231.33 211.64 185.12 157.99 136.06 114.23 98.42 82.51 63.23 35.69 5.6
Flow(m3/h) 0.52 1.11 1.52 2.03 2.51 3.12 3.58 4.04 4.51 5.16 5.65
Head(m) 77.72 74.66 73.13 71.7 70.68 64.35 58.44 52.42 43.14 33.24 19.78 10.4
Flow(m3/h) 0.6 1.02 1.5 2.02 2.54 3.06 3.43 4.05 5.01 6.02 7.08 7.66
Head(m) 91.28 87 71.49 61.6 48.75 35.08 18.76 9.68
Flow(m3/h) 1.02 2.07 3.09 4.06 5.03 6 7.05 7.54
Head(m) 137.28 130.14 120.05 99.65 79.04 59.05 33.86 10.8
Flow(m3/h) 1 2.04 3.04 4.02 5.1 6.03 7.1 7.76
Head(m) 180 150 120 90 60 30 20 10
Flow(m3/h) 1.7 2.5 3.5 4.8 6.1 7 7.5 7.8
Head(m) 58.34 55.68 53.75 51.6 48.14 42.83 36.81 30.59 24.06 14.48 2.64
Flow(m3/h) 1.05 2.16 3.04 4.09 5.02 6.03 7.08 8.01 9.09 10.02 11.01
Head(m) 115.75 110.56 98.52 83.84 73.84 62.93 49.67 38.55 20.29 1.42
Flow(m3/h) 1.08 2 3 4 5.09 6.03 7.03 8.02 9.07 10.07
Head(m) 120 110 100 80 65 50 25 10
Flow(m3/h) 1.2 2.5 3.8 5.3 7.1 8.1 9.8 10.6
Head(m) 34.37 32.22 30.39 28.86 26 21.11 13.66 5.5 3.36
Flow(m3/h) 2.08 4.01 6.04 8.01 10.11 11.99 14.01 16.01 16.69
Head(m) 58.64 56.19 52.93 50.38 46.61 36.41 27.53 15.09 3.15
Flow(m3/h) 2.08 4.16 6.04 8.01 10.1 12.15 13.99 16.04 17.37

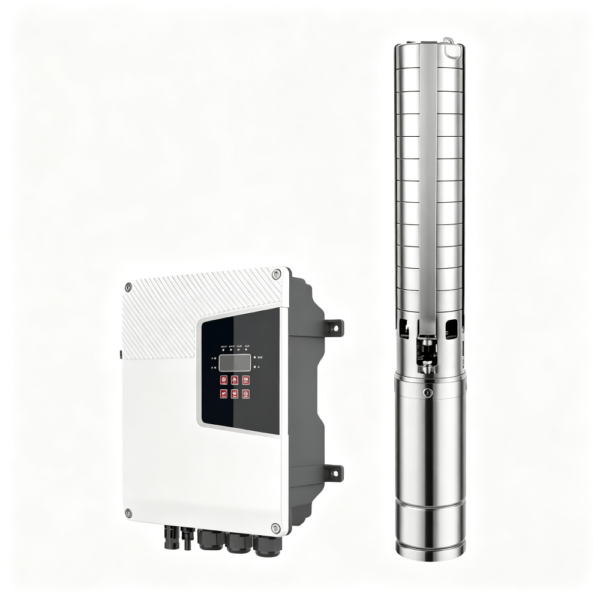

● 1 x 4" brushless solar centrifugal pump with 1 x 2m cable
● 1 AC/DC Mixing Pump Controller with MPPT function
● 1 plastic water level float switch (water tank sensor)
● 1 pump water connection
● 1 cable connection kit
● 1 set of waterproof connection kit"
