Z4PC-ADHY 4 Inch AC/DC Hybrid Solar Submersible Pump with MPPT Controller

The Z4PC-ADHY is a 4-inch AC/DC hybrid solar submersible water pump for borehole water supply, small-area irrigation, and drinking water applications. It combines a plastic impeller, brushless DC motor, and AC/DC MPPT controller for flexible pumping operation.

Brand:                                 HUOPSOLAR
Model:                                 Z4PC-ADHY
Pump Type:                         Impeller-type Solar Submersible Pump

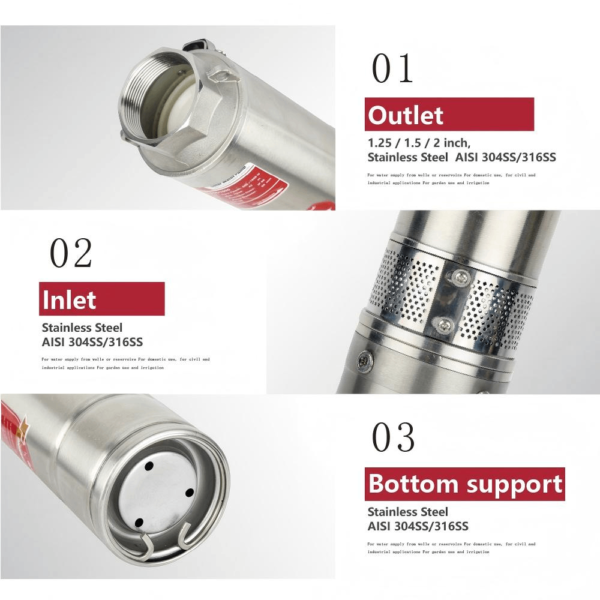

Outlet:                                 1.25/1.5/2.0 inches
Pump Diameter:                  4 inches / 95 mm
Applications:                        Domestic water supply, small-scale irrigation, drinking water
Certifications:                       CE, ISO9001, GS, RoHS
Warranty:                             2 years
Packaging Type:                   Wooden crate

Category: Brand:

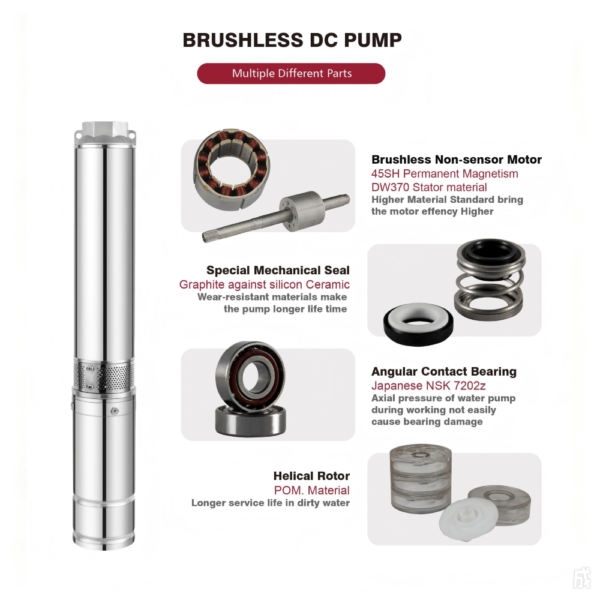

The Z4PC-ADHY is a 4-inch solar submersible water pump designed for borehole applications and available with AC/DC hybrid power input. Its centrifugal impeller design uses a plastic impeller and a brushless DC motor, while the AC/DC MPPT controller manages the available power input. The pump has a 95 mm diameter and supports 1.25, 1.5, and 2.0-inch outlets, providing configuration options for different water supply systems.

This solar agricultural water pump can be used for small-area irrigation, domestic water supply, and drinking water applications. As a solar borehole pump, it is designed for submerged water pumping from below-ground sources. The product also uses a solar centrifugal pump configuration and is supplied with CE, ISO9001, GS, and RoHS certifications, with a 2-year warranty.

No. Item Rated AC Voltage Rated DC Voltage Rated Power Optimum input  Power(W) Max. Flow Max. Head Outlet Cable Controller Solar panel
Open circuit voltage (VOC)
A Z4PC6-56-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 6m³/h 56m 1.25 " 2m ADHY ＜450V
B Z4PC6-84-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 6m³/h 84m 1.25 " 2m ADHY ＜450V
C Z4PC6-112-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 6m³/h 112m 1.25 " 2m ADHY ＜450V
D Z4PC6-135-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 6m³/h 135m 1.25 " 2m ADHY ＜450V
E Z4PC6-175-300-2200D-A/DHY 80-285V 80-430V 2200W 600-2500W 6m³/h 175m 1.25 " 2m ADHY ＜450V
F Z4PC6-192-300-2500D-A/DHY 80-285V 80-430V 2500W 600-2800W 6m³/h 192m 1.25 " 2m ADHY ＜450V
G Z4PC9-45-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 9.0m³/h 45m 2.0 " 2m ADHY ＜450V
H Z4PC9-58-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 9.0m³/h 58m 2.0 " 2m ADHY ＜450V
I Z4PC9-71-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 9.0m³/h 71m 2.0 " 2m ADHY ＜450V
J Z4PC9-85-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 9.0m³/h 85m 2.0 " 2m ADHY ＜450V
K Z4PC9-125-300-2200D-A/DHY 80-285V 80-430V 2200W 600-2500W 9.0m³/h 125m 2.0 " 2m ADHY ＜450V
L Z4PC9-148-300-2500D-A/DHY 80-285V 80-430V 2500W 600-2800W 9.0m³/h 148m 2.0 " 2m ADHY ＜450V
M Z4PC13-36-96-750D-A/DHY 80-285V 80-430V 750W 400-1200W 13m³/h 36m 2.0 " 2m ADHY ＜450V
N Z4PC13-49-150-1100D-A/DHY 80-285V 80-430V 1100W 600-1500W 13m³/h 49m 2.0 " 2m ADHY ＜450V
O Z4PC13-54-180-1300D-A/DHY 80-285V 80-430V 1300W 600-1600W 13m³/h 54m 2.0 " 2m ADHY ＜450V
P Z4PC13-63-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 13m³/h 63m 2.0 " 2m ADHY ＜450V
Q Z4PC13-110-300-2200D-A/DHY 80-285V 80-430V 2200W 600-2500W 13m³/h 110m 2.0 " 2m ADHY ＜450V
R Z4PC13-130-300-2500D-A/DHY 80-285V 80-430V 2500W 600-2800W 13m³/h 130m 2.0 " 2m ADHY ＜450V
S Z4PC17-48-200-1500D-A/DHY 80-285V 80-430V 1500W 600-1800W 17m³/h 48m 2.0 " 2m ADHY ＜450V
T Z4PC17-72-300-2200D-A/DHY 80-285V 80-430V 2200W 600-2500W 17m³/h 72m 2.0 " 2m ADHY ＜450V
U Z4PC17-80-300-2500D-A/DHY 80-285V 80-430V 2500W 600-2800W 17m³/h 80m 2.0 " 2m ADHY ＜450V

Head(m) 56 54 52 49 46 43 40 36 30 23 16 9 0
Flow(m3/h) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Head(m) 84 80 76 72 67 62 56 49 41 32 22 12 0
Flow(m3/h) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Head(m) 112 106 100 93 85 77 69 60 50 40 29 18 0
Flow(m3/h) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Head(m) 135 128 120 111 102 92 81 71 60 47 33 19 0
Flow(m3/h) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Head(m) 175 167 158 148 134 120 106 92 77 60 42 23 0
Flow(m3/h) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Head(m) 46.81 42.12 38.96 35.28 30.18 24.06 16.31 8.76 2.13 1.01
Flow(m3/h) 0 1 2.05 3.05 4 5.05 6.06 7.07 8.06 9.08
Head(m) 55.68 49.77 48.44 47.22 44.16 39.16 34.26 23.55 15.19 4.07 1.32
Flow(m3/h) 0 1.06 2.06 3.01 4 5.04 6.05 7.07 8.08 9.02 9.48
Head(m) 68.89 65.53 64.08 57.58 51.13 41.12 31.78 19.89 1.78
Flow(m3/h) 0 1.02 2.02 4.02 5.03 6 7.03 8.04 9.36
Head(m) 83 79 75 70 63 55 43 30 17 3
Flow(m3/h) 0.1 1 2 3 4 5 6 7 8 8.9
Head(m) 120 110 100 80 60 40 20 10
Flow(m3/h) 2.5 3.9 4.6 5.8 6.9 7.9 8.6 8.9
Head(m) 140 130 120 100 80 50 25 10
Flow(m3/h) 0.5 1.8 2.6 3,3 4,0 4.7 5.6 5.8
Head(m) 36.41 31.92 30.29 28.35 26.41 23.55 20.6 17.33 14.07 10.7 6.93 1.93 1.83 1.73
Flow(m3/h) 0 1.06 2.03 3.06 4.08 5.06 6.05 7.03 8 9.07 10.08 11.07 12.09 13.08
Head(m) 48.85 46.71 44.16 42.32 38.04 33.96 30.9 27.23 23.55 20.09 15.29 10.4 3.36 1.62
Flow(m3/h) 0 1.02 2.01 3.07 4.03 5.04 6.04 7.07 8.02 9 10.09 11.03 12.07 12.83
Head(m) 60.89 58.44 55.58 52.01 45.89 41.61 37.83 34.26 29.78 24.17 19.17 13.56 6.21 1.62
Flow(m3/h) 0 1.01 2.07 3.01 4.06 5.07 6 7.04 8.02 9.08 10.08 11.07 12.06 12.76
Head(m) 60.89 58.54 55.38 53.24 50.69 47.42 43.75 39.06 34.57 29.54 24.06 18.25 8.56 1.62
Flow(m3/h) 0 1.02 2.02 3.02 4.06 5.07 6.03 7.08 8.03 9 10.01 11.02 12.01 12.97
Head(m) 105.87 100.26 92.71 82.82 74.25 68.43 60.58 53.95 43.65 36.61 28.25 17.33 4.07
Flow(m3/h) 1.15 2 3.01 4.04 5.05 6.04 7.14 8 9.15 10.13 11.06 12.08 13.22
Head(m) 120 110 90 70 50 30 20 10
Flow(m3/h) 1.8 3 3.8 5.8 8 10.6 11.8 12.5
Head(m) 48.14 46.54 45.08 40.28 34.98 31.41 28.04 24.88 20.19 16.01 8.76 3.15 2.54
Flow(m3/h) 0 1.58 3.08 4.54 6.07 7.59 9.07 10.55 12.04 13.51 15.06 16.51 16.79
Head(m) 70 65 60 50 40 30 20 10
Flow(m3/h) 2.3 5.1 7.6 9.4 11 12.9 14.3 16.6
Head(m) 70 65 60 50 40 30 20 10
Flow(m3/h) 2.6 5.4 7.9 9.6 11.2 13.1 14.5 16.8

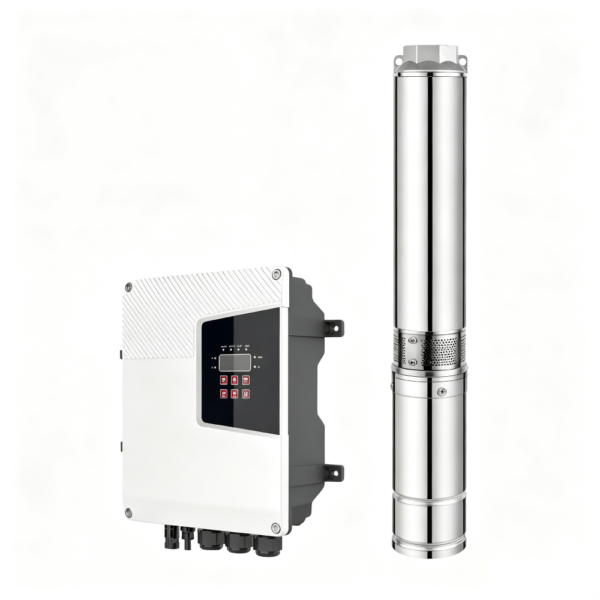

● 1 x 4-inch brushless solar centrifugal pump with a 2-meter cable
● 1 x AC/DC hybrid pump controller with MPPT function
● 1 x Plastic float switch (water tank sensor)
● 1 x Pump outlet connector
● 1 x Cable connection kit
● 1 x Waterproof connection kit
